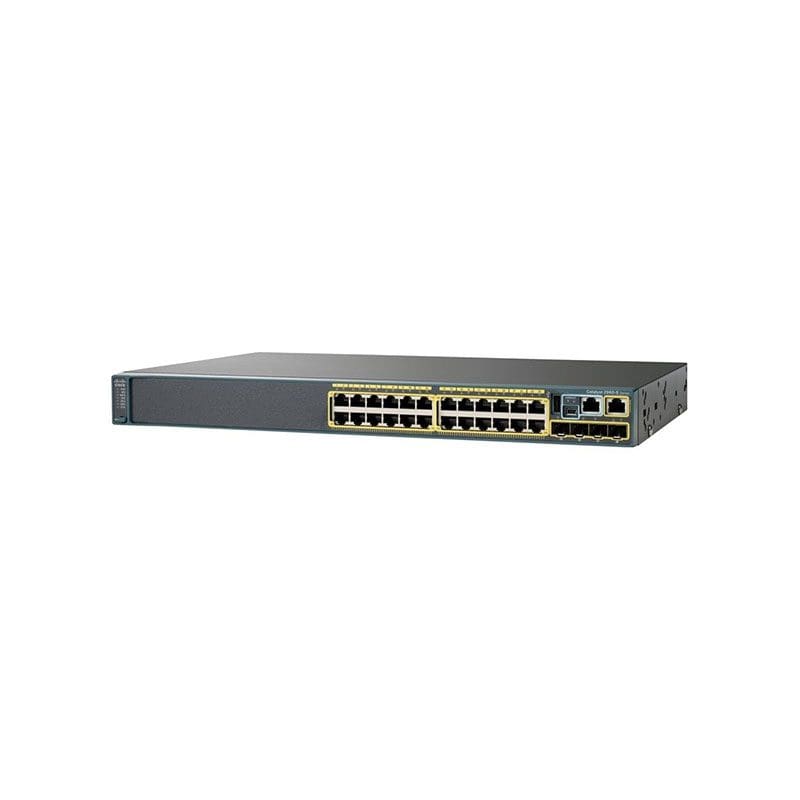

C1-C2960X-24PD-L, Cisco ONE Catalyst 2960X-24PD-L
C1-C2960X-24PD-L Overview
Cisco Catalyst 2960-X series switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications.
$4,655
C1-C2960X-24PD-L Technical Specifications
Cisco ONE Catalyst 2960X-24PD-L Managed Switch – 24 PoE+ Ethernet Ports & 2 SFP+ Ports
General Information
Manufacturer Cisco Systems, Inc
Brand Name Cisco
Product Line Cisco ONE Catalyst
Product Series 2960-X
Product Model 2960X-24PD-L
Product Name Catalyst 2960-24PD-L Ethernet Switch
Product Type Ethernet Switch
Interfaces/Ports
Total Number of Network Ports 24
Uplink Port Yes
Modular No
Stack Port No
Port/Expansion Slot Details 24 x Gigabit Ethernet Network
Port/Expansion Slot Details 2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported Optical Fiber
Media Type Supported Twisted Pair
Ethernet Technology 10 Gigabit Ethernet
Ethernet Technology Gigabit Ethernet
Network Technology 10GBase-X
Network Technology 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots 2
Expansion Slot Type SFP+
Number of SFP+ Slots 2
Network & Communication
Layer Supported 3
Management & Protocols
Manageable Yes
