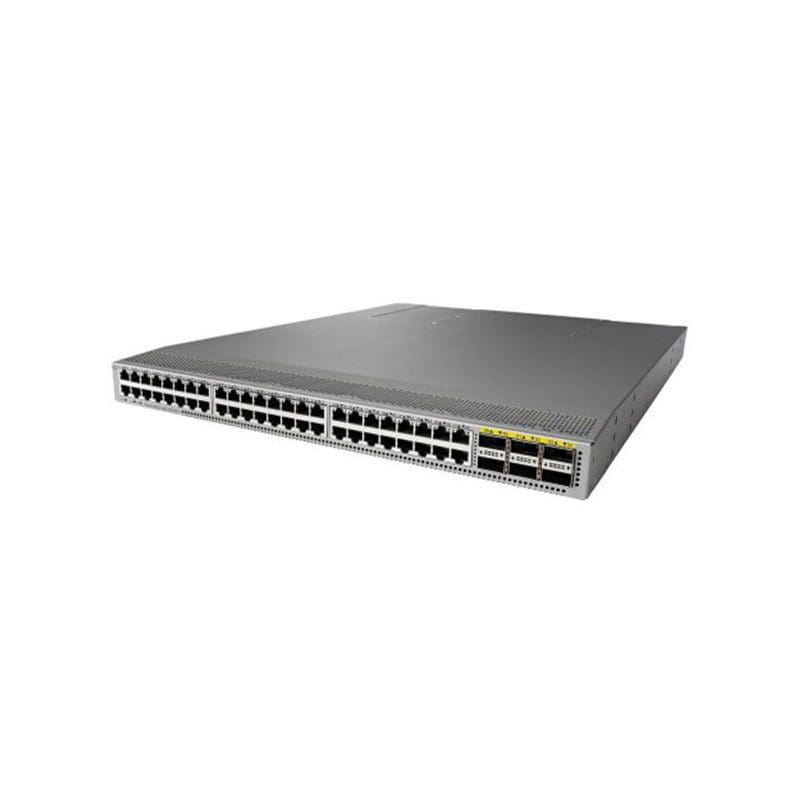

Refurbished C1-N3K-C3172TQ-XL Technical Specifications
Cisco ONE Nexus 3172TQ Switch L3 managed 48 x 10GBase-T + 6 x QSFP+ rack-mountable
Interface Provided
Comments : Management
Qty : 1
Type : 1000Base-T
Connector Type : QSFP+
Qty : 6
Type : 40Gbit LAN
Connector Type : RJ-45
Qty : 48 Port
Type : 10GBase-T
Type : Serial (RS-232)
Type : USB
Networking
Advanced Switching : Layer 3
Compliant Standards : IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3z
Features : Access Control List (ACL) support, Broadcast Storm Control, DHCP snooping, EIGRP Stub Routing, Equal-Cost Multipath (ECMP), Hot Standby Router Protocol (HSRP) support, LACP support, LLDP support, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), RADIUS support, Rapid Spanning Tree Protocol (RSTP) support, Redundant hot swappable fans, Syslog support, Uni-Directional Link Detection (UDLD), Unicast Reverse Path Forwarding (URPF), Unicast Storm Control, Virtual PortChannel (vPC) technology, VLAN support, Weighted Random Early Detection (WRED), Weighted Round Robin (WRR) queuing
Form Factor : Rack-mountable
Jumbo Frame Support : 9216 bytes
Manageable : Yes
Ports Qty : 72
Remote Management Protocol : CLI, RMON, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet
Routing Protocol : EIGRP, MSDP, OSPFv2, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-2, Static IP routing, VRRP
Subcategory : Network hubs and switches
Subtype : 10 Gigabit Ethernet
Type : Switch
Miscellaneous
Authentication Method : RADIUS, Secure Shell v.2 (SSH2), TACACS+
Color Category : Gray
Compliant Standards : AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47, GB 49493, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, RoHS, UL 60950-1 Second Edition, VCCI Class A
Encryption Algorithm : AES
Height (Rack Units) : 1
Environmental Parameters
Humidity Range Operating : 10 – 85% (non-condensing)
Humidity Range Storage : 5 – 95% (non-condensing)
Max Operating Temperature : 104 °F
Max Storage Temperature : 158 °F
Min Operating Temperature : 32 °F
Min Storage Temperature : -40 °F
Header
Brand : Cisco
Compatibility : PC
Manufacturer : CISCO DS HARDWARE DIRECT
Model : 3172TQ
Packaged Quantity : 1
Product Line : Cisco ONE Nexus
Product Series N3K
Power Device
Hot-Plug : Hot-plug
Installed Qty : 0
Max Supported Qty : 2
Power Provided : 440 Watt
Power Redundancy : Optional
Type : Internal power supply
Software
Type : Cisco NX-OS Layer 3 Base Services
Dimensions & Weight
Depth : 19.9 in
Height : 1.7 in
Weight : 22.05 lbs
Width : 17.3 in
Capacity
Type : ACL entries (egress)
Value : 1000
Type : ACL entries (ingress)
Value : 4000
Type : MAC addresses
Value : 288000
Type : Multiple Spanning Tree Protocol instances
Value : 64
Type : Rapid Spanning Tree Protocol instances
Value : 512
Type : Virtual interfaces (VLANs)
Value : 4096
Performance
Type : Switching capacity
Value : 1.4 Tbps
Ports
Qty : 48
Type : 10GBase-T
Ports (2nd)
Qty : 6
Type : QSFP+
RAM
Installed Size : 8 GB
