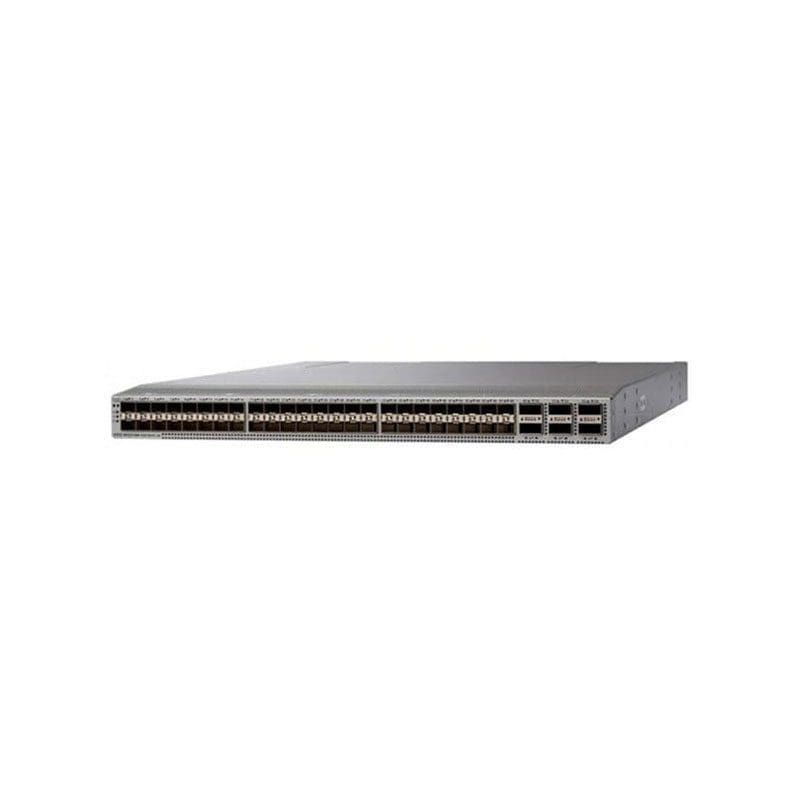

Refurbished C1-N9K-C93180YC-FX Cisco ONE Nexus

Refurbished C1-N9K-C93180YC-FX Technical Specifications

 Cisco ONE Nexus 93180YC-FX – switch – 48 ports – managed – rack-mountable

Interface Provided
Comments : Downlink
Connector Type : SFP+
Qty : 48 SFP+
Type : 1/10/25Gbit LAN / 8/16/32Gb Fibre Channel
Comments : Uplink
Connector Type : QSFP28
Qty : 6
Type : 100Gbit/40Gbit LAN
Connector Type : RJ-45
Qty : 1
Type : Management
Type : Serial (RS-232)
Type : USB
Networking
Advanced Switching : Layer 3
Compliant Standards : IEEE 802.1ae
Features : 4 fans, 40MB system buffer, Access Control List (ACL) support, Ethernet Virtual Private Network (EVPN), MACsec support, Multiple Spanning Tree Protocol (MSTP) support, Power On Auto Provisioning (POAP), Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Virtual Extensible LAN (VXLAN), Virtual PortChannel (vPC) technology
Form Factor : Rack-mountable
MAC Address Table Size : 512K entries
Manageable : Yes
Ports Qty : 48
Routing Protocol : BGP, ECMP, EIGRP, HSRP, MPLS, MSDP, OSPF, PIM-SM, RIP, RIP-2
Subcategory : Network hubs and switches
Subtype : 25 Gigabit Ethernet / 32Gb Fibre Channel
Type : Switch
Miscellaneous
Color Category : Gray
Compliant Standards : AS/NZS 60950-1, CAN/CSA C22.2 No. 60950-1 Second Edition, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, Directive 2004/108/EC, Directive 2006/95/EC, EN 300386, EN 55022 Class A, EN 60950-1 Second Edition, EN55024, EN61000-3-2, EN61000-3-3, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN 61000-4, KN22 Class A, RoHS, RoHS 6/6, UL 60950-1 Second Edition, VCCI Class A
Height (Rack Units) : 1
Included Accessories : Fixed accessory kit
Rack Mounting Kit : Included
Environmental Parameters
Humidity Range Operating : 5 – 95% (non-condensing)
Max Operating Temperature : 104 °F
Max Storage Temperature : 158 °F
Min Operating Temperature : 32 °F
Min Storage Temperature : -40 °F
Header
Brand : Cisco
Compatibility : PC
Manufacturer : CISCO DS HARDWARE DIRECT
Model : 93180YC-FX
Packaged Quantity : 1
Product Line : Cisco ONE Nexus
Product Series : N9K
Power Device
Hot-Plug : Hot-plug
Max Supported Qty : 2
Power Consumption Operational : 425 Watt
Power Redundancy : Optional
Power Redundancy Scheme : N+1
Type : Internal power supply
Software
Type : Cisco NX-OS
Dimensions & Weight
Depth : 22.5 in
Height : 1.7 in
Weight : 17.42 lbs
Width : 17.3 in
Capacity
Type : ACL entries (egress)
Value : 2000
Type : ECMP paths
Type : HSRP groups
Value : 490
Type : IGMP snooping groups
Value : 32000
Type : Latency
Value : < 1 µs
Type : Maximum number of links in a port channel
Value : 32
Type : Maximum number of port channels
Value : 512
Type : Multicast routes
Type : Multiple Spanning Tree Protocol instances
Value : 64
Type : Per VLAN Rapid Spanning Tree instances
Value : 4000
Type : Virtual Routing and Forwarding (VRF) instances
Value : 16000
Type : VLANs supported
Value : 4096
Performance
Type : Active SPAN sessions
Value : 4
Type : Bandwidth
Value : 3.6 Tbps
Ports
Qty : 48
Type : 1/10/25 Gigabit Ethernet / 8/16/32Gb Fiber Channel / FCoE SFP+
Ports (2nd)
Qty : 6
Type : 40/100 Gigabit QSFP28 / FCoE
RAM
Installed Size : 64 GB
