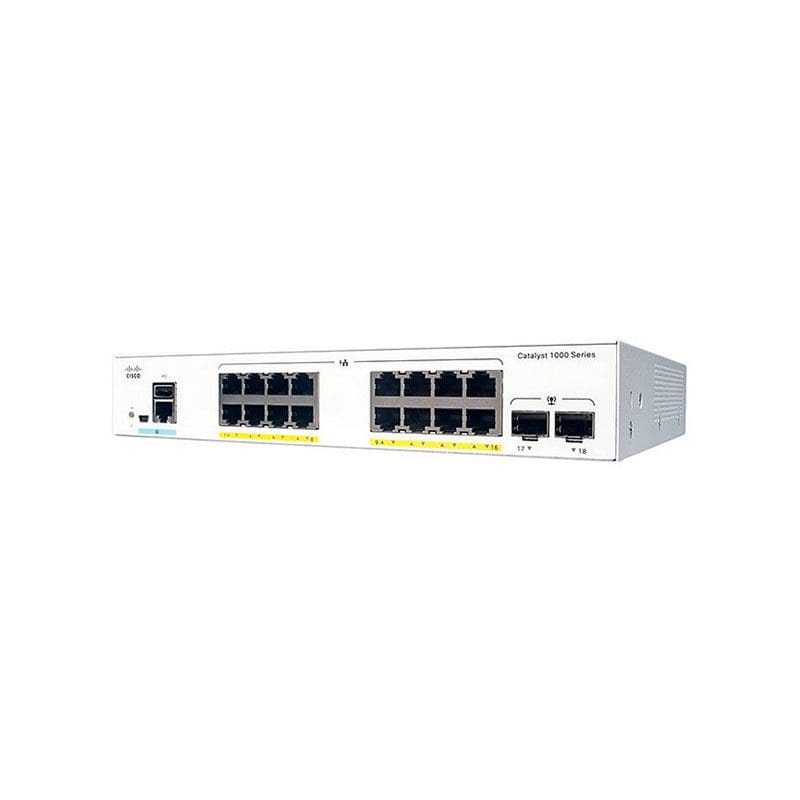

C1000-16T-2G-L Technical Specifications
Cisco Catalyst 1000 with 16 Port GE 2 SFP Slot Uplink
Product Line: Cisco Catalyst
Product Series: C1000
Hardware
16 Port Network Switch
Console ports
2 SFP
1x RJ-45 Ethernet
USB mini-B
USB-A port for storage and Bluetooth console
Indicator LEDs
Per-port status: link integrity, disabled, activity
System status: system
Dimensions (WxDxH in inches) 10.56 x 12.73 x 1.73
Memory and processor
CPU
ARM v7 800 MHz
DRAM
512 MB
Flash memory
256 MB
Performance
Forwarding bandwidth
18 Gbps
Switching bandwidth
36 Gbps
Forwarding rate
(64‑byte L3 packets)
26.78 Mpps
Unicast MAC addresses
15,360
IPv4 unicast direct routes
542
IPv4 unicast indirect routes
256
