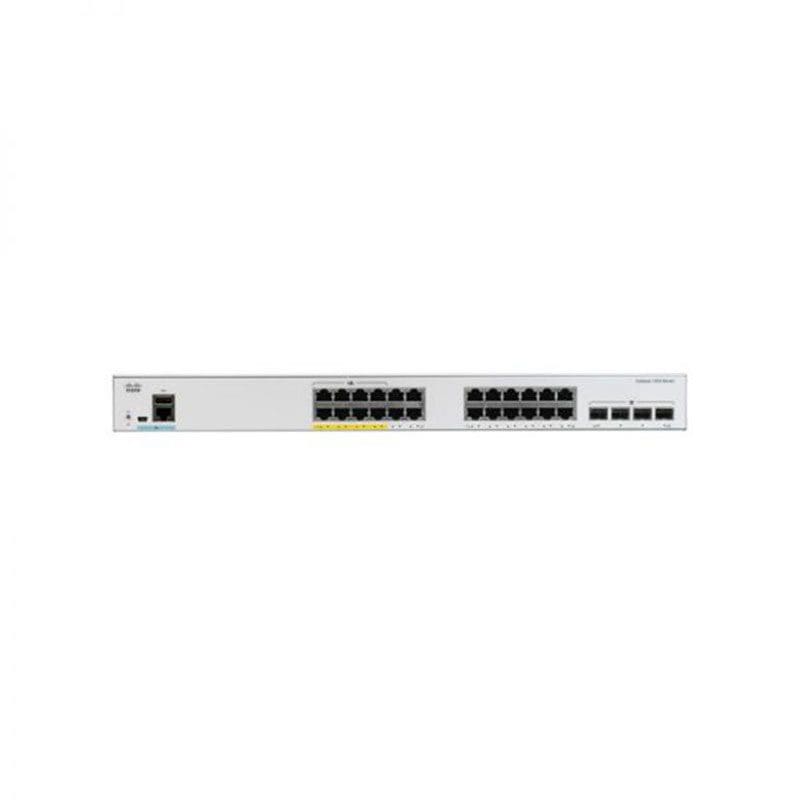

C1000-24P-4G-L Technical Specifications
Switch Cisco 24 Port PoE+195W 4 SFP Uplink
Product Line: Cisco Catalyst
Product Series: C1000
Hardware
24 Port Network Switch
Interface 24x 10/100/1000 Ethernet ports and a 195W PoE budget, 4 SFP uplinks
Ethernet Technology: Gigabit Ethernet
Console ports
1x RJ-45 Ethernet
USB mini-B
USB-A port for storage and Bluetooth console
Indicator LEDs
Per-port status: link integrity, disabled, activity
System status: system
Dimensions (WxDxH in inches) 17.5 x 11.76 x 1.73
Weight 3.53
Memory and processor
CPU
ARM v7 800 MHz
DRAM
512 MB
Flash memory
256 MB
Performance
Forwarding bandwidth
28 Gbps
Switching bandwidth
56 Gbps
Fowarding rate
(64‑byte L3 packets)
41.67 Mpps
Unicast MAC addresses
15,360
IPv4 unicast direct routes
542
