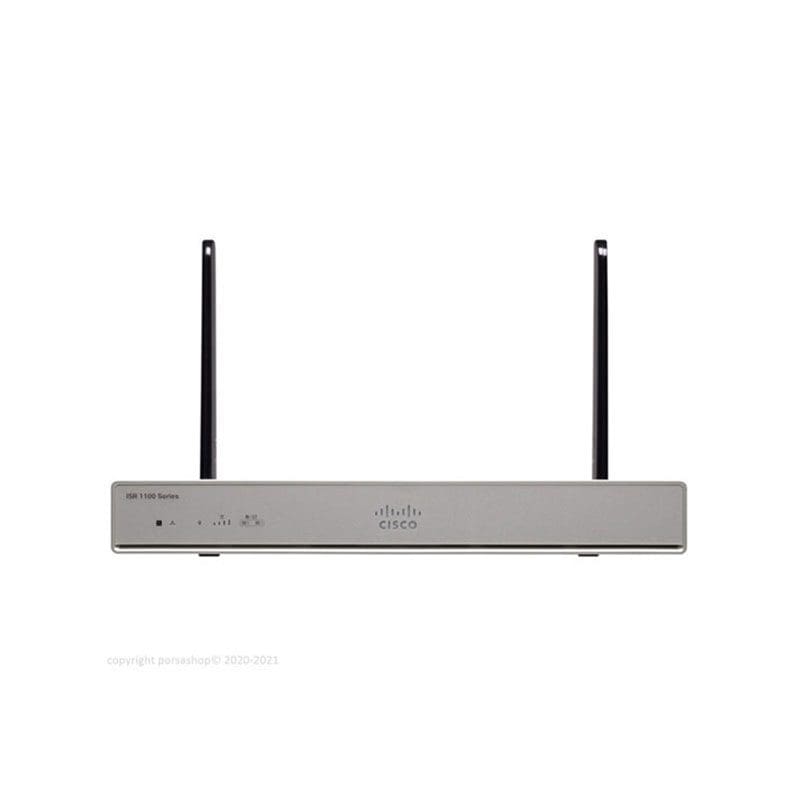

C1111-8PLTEEAWX Cisco 1100 Series Integrated Services Router

C1111-8PLTEEAWX Technical Specifications

Cisco 1100 Series Integrated Services Router

Manufacturer: Cisco
Manufacturer Part Number: C1111-8PLTEEAWX
Memory (default and maximum)
DRAM: 4 GB
Flash: 4 GB
Console
Micro USB console (USB 3.0).
Mini-USB port (reserved)
802.11ac
2×2 SU-MIMO/MU-MIMO with two spatial streams.
Maximal Ratio Combining (MRC).
20-, 40-, and 80-MHz channels.
PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz).
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx).
802.11 Dynamic Frequency Selection (DFS).
Cyclic Shift Diversity (CSD) support.
External power supply
AC input voltage: Universal 100 to 240 VAC.
Frequency: 50 to 60 Hz.
Maximum output power: 66W (default).
Output voltages: 12 VDC.
External output voltage: 48 VDC.
USB 3.0
USB devices supported:
LEDs
WWAN (green/amber).
SIM status (green/amber).
3G/LTE service (green/amber).
GPS (green/amber).
