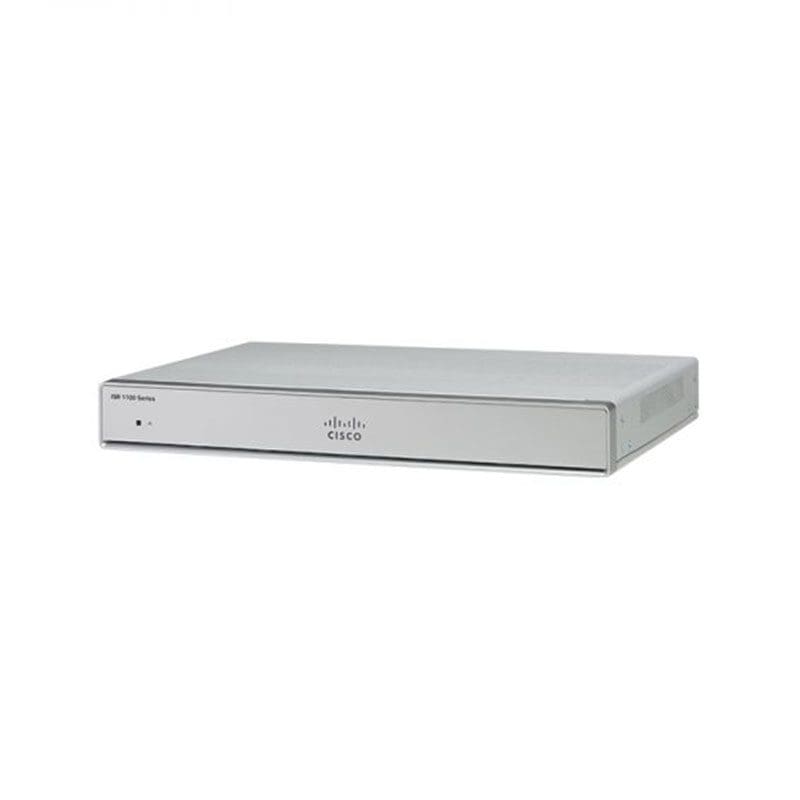

C1117-4PMLTEEA Cisco 1100 Series Integrated Services Router

C1117-4PMLTEEA Overview

Cisco 1100 Series Integrated Services Router (ISRs) delivers Cisco IOS® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices. The C1117-4PMLTEEA is the ISR 1100 4P Annex M Router with w/ LTE Adv, SMS/GPS EMEA & NA.

$1,569

Buy Now
Availability: In Stock
SKU:C1117-4PMLTEEA
Brand:

C1117-4PMLTEEA Technical Specifications

Cisco 1100 Series Integrated Services Router

Description
ISR 1100 4P DSL Annex M Router w/ LTE Adv SMS/GPS EMEA & NA
Physical Properties
Dimensions (H x W x D)
LTE models:
H x W X D = 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet)
Weight with AC PS (w/o modules)
5.5 Lbs. (2.5 kg) maximum
AC Input Power
Input voltage
Universal 100 to 240 VAC
Frequency
50-60 Hz
Input current
PoE not enabled: 0.82A maximum
PoE enabled: 1.55A Maximum
Surge current
90 A peak and less than 8 Arms per half cycle
Ports
Micro USB Port
One RJ-45: Separate console port
USB port
USB 3.0 Type A host port
USB devices supported:
USB flash memory
