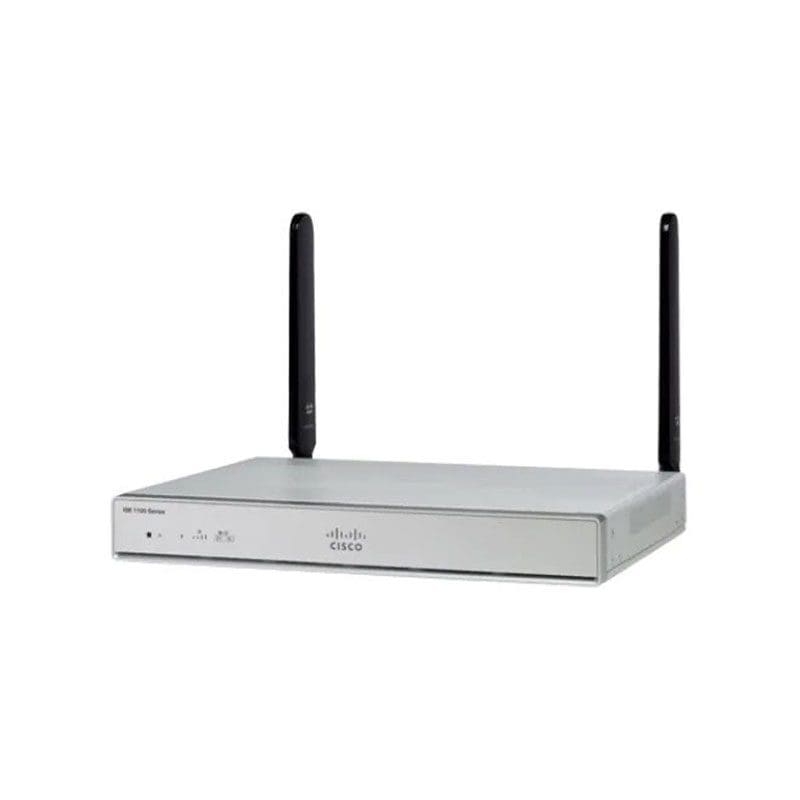

C1117-4PMWE Cisco 1100 Series Integrated Services Router

C1117-4PMWE Overview

Cisco 1100 Series Integrated Services Router (ISRs) delivers Cisco IOS® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices. The C1117-4PMWE is the ISR 1100 4P Router with DSL Annex M, w/ LTE Adv, SMS/GPS and 802.11ac -E WiFi.

$0

Buy Now
Availability: In Stock
SKU:C1117-4PMWE
Brand:

C1117-4PMWE Technical Specifications

Cisco 1100 Series Integrated Services Router

AC Input Power
Input voltage: Universal 100 to 240 VAC
Frequency: 50-60 Hz
Input current:
PoE not enabled: 0.82A maximum
PoE enabled: 1.55A Maximum
Surge current: 90 A peak and less than 8 Arms per half cycle
Ports: Micro USB Port
One RJ-45: Separate console port
USB port: USB 3.0 Type A host port
USB devices supported: USB flash memory
Console port
10/100/1000 Gigabit Ethernet
Two GE ports allocated among RJ45 and SFP as:
Wireless VLANs
32 (encrypted and non-encrypted VLANs)
Wireless specifications: 2×2 .11ac Wave 2
Default and maximum DRAM: 4GB
Default and maximum flash: 4GB
Inline PoE
4 ports for -8P PIDs, 2 ports for -4P PIDs
Acoustic for Cisco 1100 Series ISRs
Not Applicable – Fanless design
