Refurbished C1861W-SRST-C-F/K9 Technical Specifications

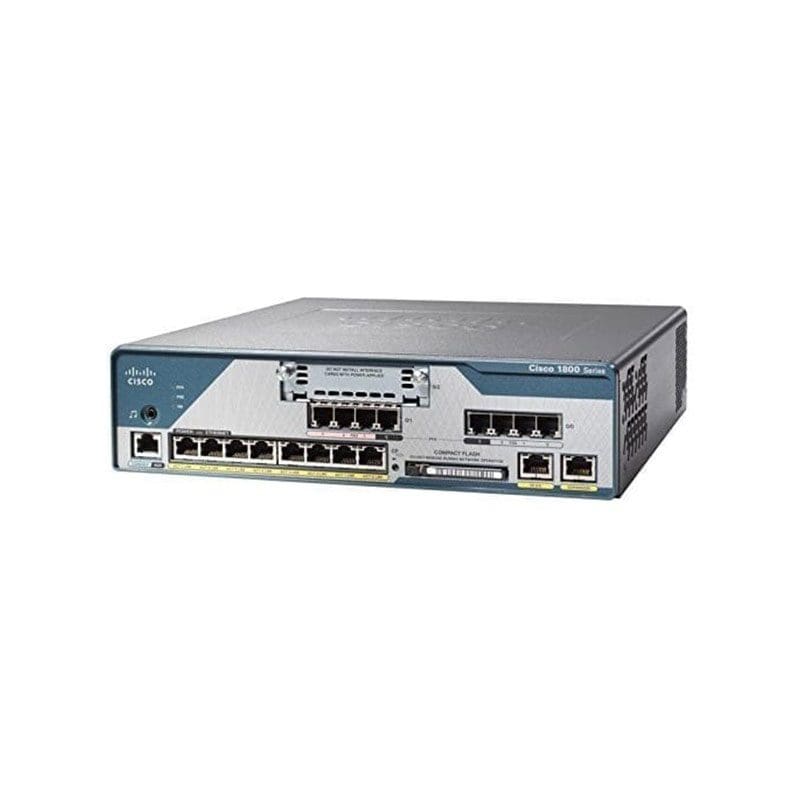

Cisco 1861 Integrated Services Router
PRODUCT : Cisco 1861 Integrated Services Router,
Integrated Services Router
Series Cisco 1800
Model C1861W
WLAN, 8-usrSRST/CME, CUE, 4FXS, 4FXO, 8xPOE, SP Svcs, HWICslot
CONFIGURATION: Default of 8-user Cisco Unified CME or SRST configuration
MEMORY : DRAM(256 MB Cisco IOS Software) ; 512 MB Voice messaging
COMPACT FLASH MEMORY : Cisco IOS Software – 128 MB
Voice messaging – 1 GB; Compact Flash
ONBOARD ETHERNET PORTS: 1 x 10/100 Fast Ethernet ; 8 x 10-/100-Mbps LAN
1 x 10/100 Ethernet expansion port
WAN SLOT: 1 x HWIC slot
WLAN HARDWARE: 802.11b/g ; Automatic rate selection for 802.11b/g
RP-TNC connectors for field-replaceable external antennas
Antenna diversity
Indoor range: 1 Mbps at 320 ft (97.54m)
Wireless Ethernet Compatibility Alliance (WECA) interoperability
Default antenna gain: 2.2 dBi
FXS PORTS: 4 built-in FXS ports
PSTN INTERFACES : 4 built-in FXO ports
CONSOLE PORT : 1 Up to 115.2 kbps
VOICEMAIL PORTS: 6 ports for voicemail and Automated Attendant
PoE PORTS : Base unit includes 8 built-in 10/100 PoE ports
DIMENSIONS: 66 x 266 x 280 mm (H x W x D)
RACK HEIGHT: 1.5 rack unit (RU)
* Includes default Cisco IOS Software image SP Services K9
* Single 3.5-mm audio port or wave file stored in flash memory
