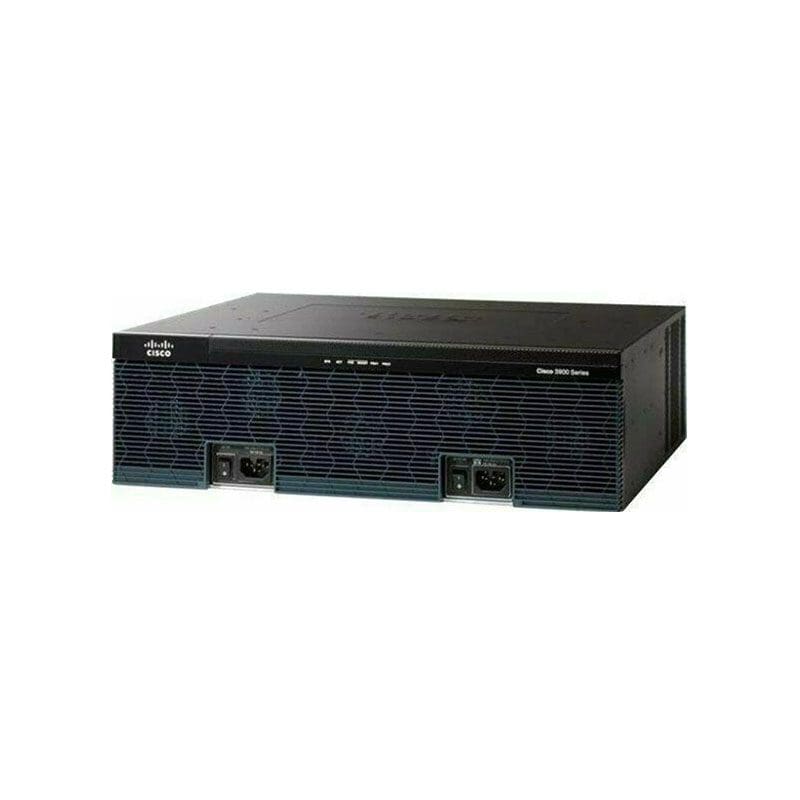

Refurbished C3925E-VSEC-SRE/K9 Technical Specifications
Cisco 3925E SRE Bundle, SRE 900, PVDM3-64, UC, SEC Lic. PAK.
General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number C3925E-VSEC-SRE/K9
Brand Name Cisco
Product Line Cisco SRE
Bundle Cisco C3925E SRE Bundle, SRE 900, PVDM3-64, UC, SEC Lic. PAK
Product Type Router
Form Factor Desktop – modular – 3U
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Capacity Cisco Unified Communications Manager Express sessions : 400
Cisco Unified SRST sessions : 1350
Network / Transport Protocol IPSec, PPPoE, L2TPv3
Routing Protocol OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
Remote Management Protocol SNMP, RMON
Encryption Algorithm SSL
Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag
DRAM Memory 1 GB (installed) / 2 GB (max)
Flash Memory 256 MB (installed) / 8 GB (max)
Hard Drive 1 TB
LED Status Lights Indicators Link activity, power
Communications
Type Voice / fax module
Digital Ports Qty 64
Protocols & Specifications ITU G.168
IP Telephony
Voice Codecs G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726
Connectivity Slots
Router Interfaces-
WAN : 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45
Management : 1 x console – RJ-45
Management : 1 x console – mini-USB Type B
Serial : 1 x auxiliary – RJ-45
USB : 3 x 4 pin USB Type A
1 x 10Base-T/100Base-TX/1000Base-T – RJ-45
2 x SFP (mini-GBIC)
Expansion Slot(s)-
3 (total) / 3 (free) x EHWIC
3 (total) / 2 (free) x PVDM
2 (total) / 1 (free) x CompactFlash Card
2 (total) / 1 (free) x service module (SM)
Power Supply
Power Device Power supply – internal
Voltage Required AC 120/230 V ( 50/60 Hz )
