C3945-VSEC-PSRE/K9 Technical Specifications

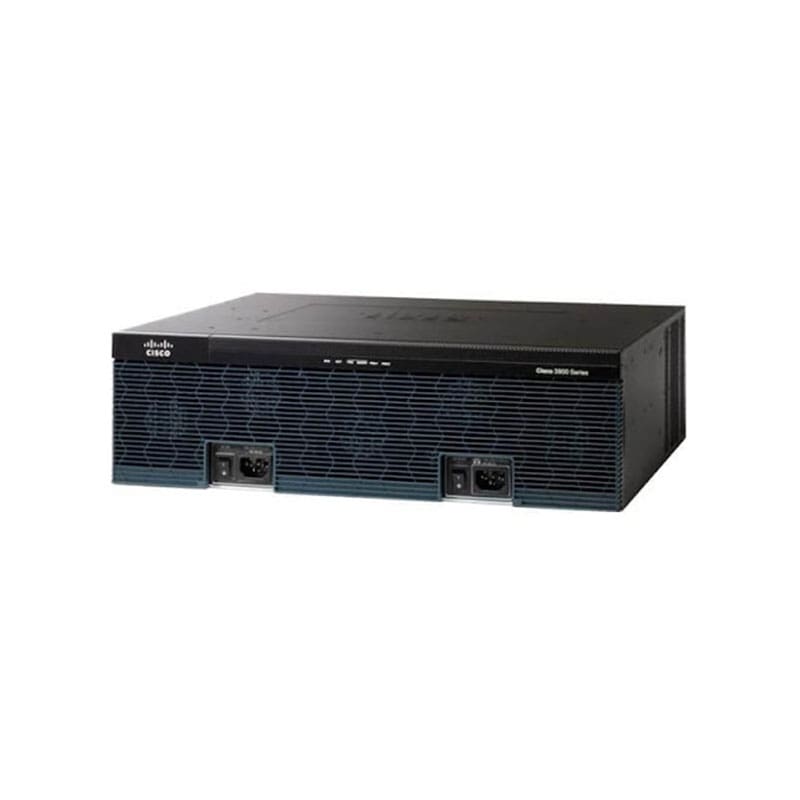

Cisco 3945 900 Security Services New
Brand: Cisco
Product Condition: New
Manufacturer Part Number : C3945-VSEC-PSRE/K9
Brand Name: Cisco
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Capacity
Cisco Unified Communications Manager Express sessions: 350 Cisco Unified SRST sessions: 1200
Network / Transport Protocol : TCP/IP, UDP/IP, RSVP, IPSec, PPPoE, L2TPv3
Routing Protocol
OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
Remote Management Protocol : SNMP, RMON
Encryption Algorithm : SSL
Features
Firewall protection, NAT support, hardware encryption, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN)
Compliant Standards
IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438, EN 300 386
RAM : 1 GB (installed) / 2 GB (max)
Flash Memory : 256 MB (installed) / 8 GB (max)
Hard Drive : 1 TB
Status Indicators : Power, link/activity
Communications
Type : Voice / fax module
Digital Ports Qty : 64
Protocols & Specifications : ITU G.168
IP Telephony:
Voice Codecs : G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726
Expansions And Connectivity:
Interfaces :
WAN: 3 x 10Base-T/100Base-TX/1000Base-T – RJ-45 Management: 1 x console – RJ-45 Management: 1 x console – mini-USB Type B Serial: 1 x auxiliary – RJ-45 USB: 3 x 4 pin USB Type A 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 2 x SFP (mini-GBIC)
Expansion Slots :
4 (total) / 4 (free) x EHWIC 4 (total) / 3 (free) x PVDM 2 (total) / 1 (free) x CompactFlash 4 (total) / 3 (free) x service module (SM) 1 (total) / 1 (free) x ISM
Power:
Power Device : Internal power supply
Voltage Required : AC 120/230 V (50/60 Hz)
