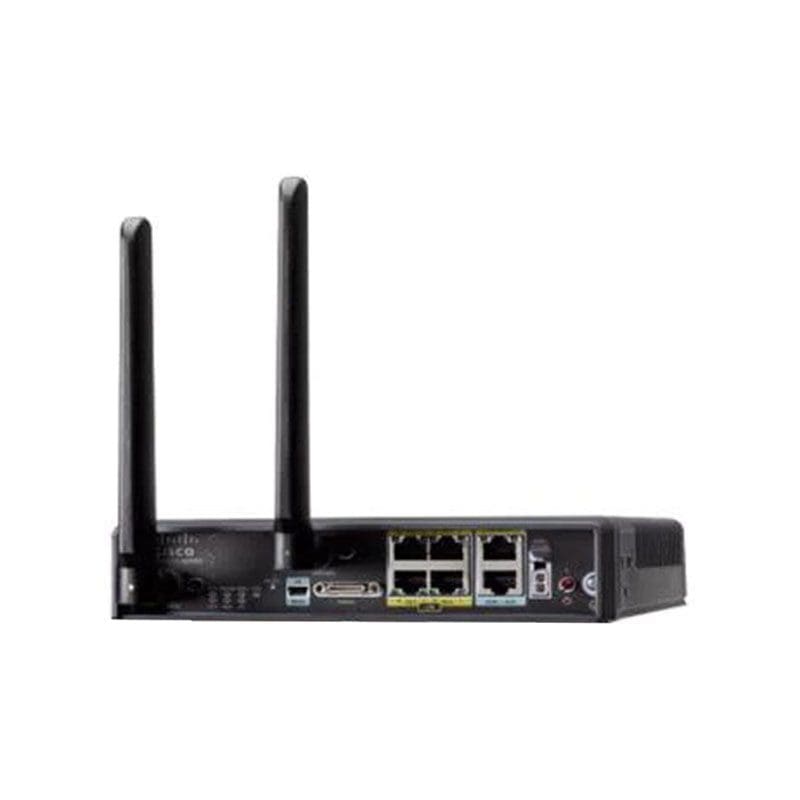

Refurbished C819HG-4G-G-K9 Technical Specification
Cisco 819 4G LTE M2M Gateway Router
General
Device Type Router – 4-port switch (integrated)
Enclosure Type Desktop
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet
Capacity IPSec VPN tunnels: 20
Network / Transport Protocol IPSec
Routing Protocol OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, GRE, policy-based routing (PBR), WCCP, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol Telnet, SNMP 3, HTTP, SSH, CLI
Encryption Algorithm DES, Triple DES, PKI, 128-bit AES, 192-bit AES, 256-bit AES
Authentication Method RADIUS, TACACS+
Features Firewall protection, NAT support, VPN support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, content filtering, DiffServ support, MAC address filtering, IPv6 support, Intrusion Prevention System (IPS), firmware upgradable, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), RADIUS support, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, DHCP relay, DHCP client
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, MIL-STD 810G, BSMI CNS 13438, EN 301 908, VCCI V-3, IP41, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, SAE J 1455, EN 301 489-7, EN 301 489-1, EN 300 386, EN 301 489-24, EN 301 511
RAM 1 GB (installed) / 1 GB (max)
Flash Memory 1 GB (installed) / 1 GB (max)
Status Indicators System, active, wireless
Expansion / Connectivity
Interfaces WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX – RJ-45 ¦ Management: 1 x RJ-45 ¦ USB: 1 x mini-USB Type A
Power
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
Antenna
Antenna External detachable
Antenna Qty 2
Software / System Requirements
OS Provided Cisco IOS Advanced IP services
