C81YR Technical Specifications

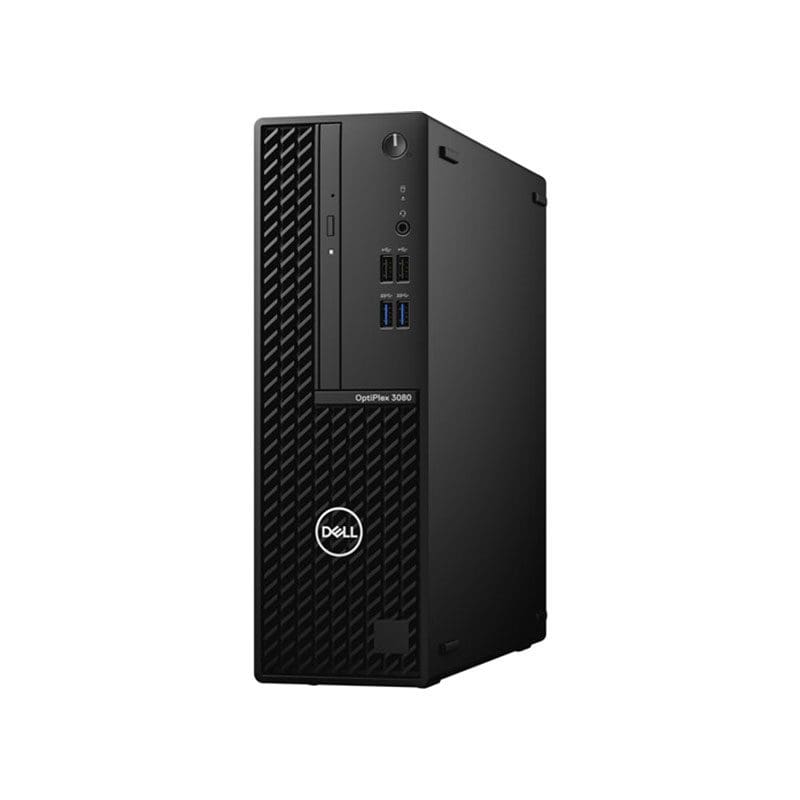

Dell OptiPlex 3080 Small Form Factor Desktop Computer
Manufacturer Dell
Manufacturer Part # C81YR
Chipset Intel B460
Processor Intel Core i5-10505 (10th Gen)
CPU Socket LGA 1200
CPU 3.2 to 4.6 GHz 6-Core
L3 Cache 12 MB
Memory Type 2666 MHz DDR4
Total Installed Memory 8 GB
Memory Configuration 1 x 8 GB (User-Replaceable)
Maximum Memory Capacity 64 GB
Memory Slot Type DIMM
Memory Slots 2 (1 Available)
Graphics Type Integrated
GPU Intel UHD Graphics 630
Storage and Expansion
Total Drive Bays 1 x 2.5/3.5″ (Internal)
SSD Slots 1 x M.2 2280 PCIe (Unspecified Interface) x4 (In Use)
Total Installed Capacity 256 GB
Solid State Storage 1 x 256 GB M.2 NVMe PCIe
PCI Expansion 1 x PCIe 3.0 x16
1 x PCIe 3.0 x1
1 x M.2 2230 (E-Key) (Available)
Optical Drive 8x-Speed Tray-Load SuperMulti DVD Burner with Dual Layer Support
I/O
Ports 4 x USB-A 3.0 / 3.1/3.2 Gen 1
4 x USB-A 2.0
Display 1 x DisplayPort 1.4 Output
1 x HDMI 1.4 Output
Audio I/O 1 x 1/8″ / 3.5 mm Headphone/Microphone Input/Output
1 x 1/8″ / 3.5 mm Line Input/Output
Built-In Speakers None
Built-In Microphones None
Media/Memory Card Slot None
Communications
Ethernet 1 x RJ45 (Gigabit)
Wi-Fi None
MU-MIMO Support None
Bluetooth None
NFC No
Keyboard & Mouse
Keyboard USB Full-Size Keyboard with Number Pad
Pointing Device USB Mouse
General
Power Supply 200 W with IEC
AC Input Power 90 to 264 VAC, 50 / 60 Hz at 3.2 A
Operating Temperature 50 to 95°F / 10 to 35°C
Operating Humidity 20 to 80% (Non-Condensing)
Certifications ENERGY STAR, EPEAT, RoHS, WEEE, as per Manufacturer
Dimensions 11.53 x 11.42 x 3.65″ / 292.86 x 290.07 x 92.71 mm
Weight 11.07 lb / 5.02 kg
