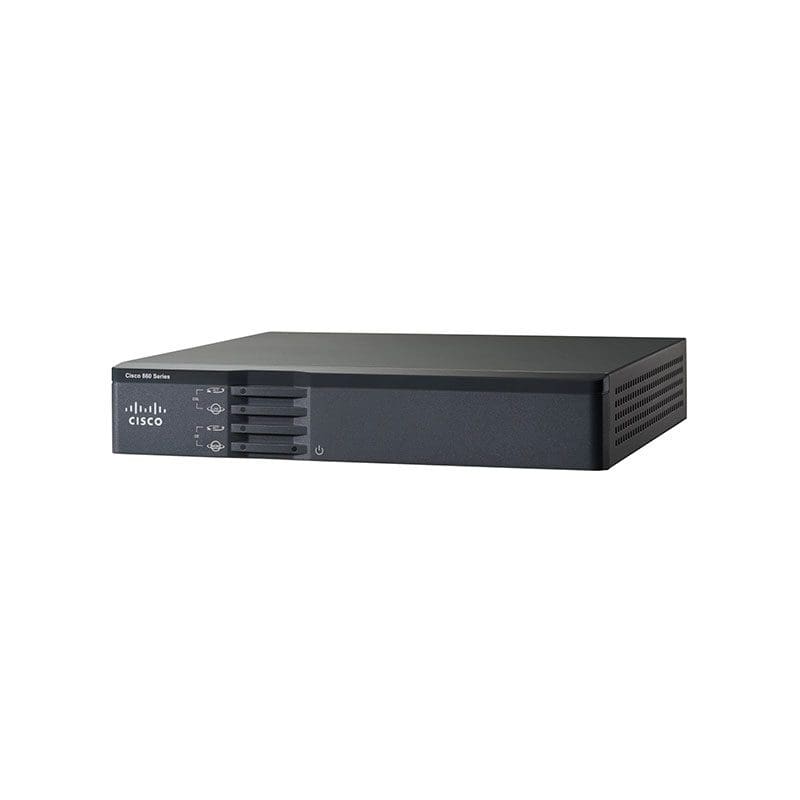

Refurbished C867VAE-W-E-K9 Technical Specification
Cisco Wireless Router
General
Device Type Wireless router – 5-port switch (integrated)
Enclosure Type Desktop
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0)
Frequency Band 2.4 GHz
Selectable Channels Qty 13
Capacity IPSec VPN tunnels: 10
Network / Transport Protocol IPSec, PPPoE, PPPoA, DHCP, DNS
Routing Protocol RIP-1, RIP-2, BGP, policy-based routing (PBR)
Remote Management Protocol SNMP 3, HTTP, HTTPS, SSH
Encryption Algorithm LEAP, DES, Triple DES, MD5, TLS, PEAP, TTLS, TKIP, WPA, WPA2, WPA-PSK, PKI, 128-bit AES, 192-bit AES, 256-bit AES
Authentication Method RADIUS, TACACS+
Features NAT support, VLAN support, auto-uplink (auto MDI/MDI-X), Stateful Packet Inspection (SPI), MAC address filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Access Control List (ACL) support, Quality of Service (QoS), DHCP server, DNS proxy, NetFlow
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11g, IEEE 802.3ah, Wi-Fi CERTIFIED, IEEE 802.11n (draft 2.0), CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, EN 61000-4-3, EN 61000-4-6, AS/NZS 3548, FCC CFR47 Part 15, VCCI V-3
RAM 256 MB (installed) / 256 MB (max)
Flash Memory 128 MB (installed) / 128 MB (max)
Status Indicators Port status, power
Line Properties
Framing Format ANSI T1.413
Expansion / Connectivity
Interfaces LAN: 3 x 10Base-T/100Base-TX – RJ-45 ¦ LAN: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ WAN: 1 x VDSL2 / ADSL2+ – RJ-11 ¦ Management: 1 x console – RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A
Power
Power Device External power adapter – 30 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Antenna
Antenna External detachable
Antenna Qty 3
Directivity Omni-directional
Gain Level 2 dBi
Software / System Requirements
OS Provided Cisco IOS Advanced Security
