Refurbished C887VAM-K9 Technical Specification

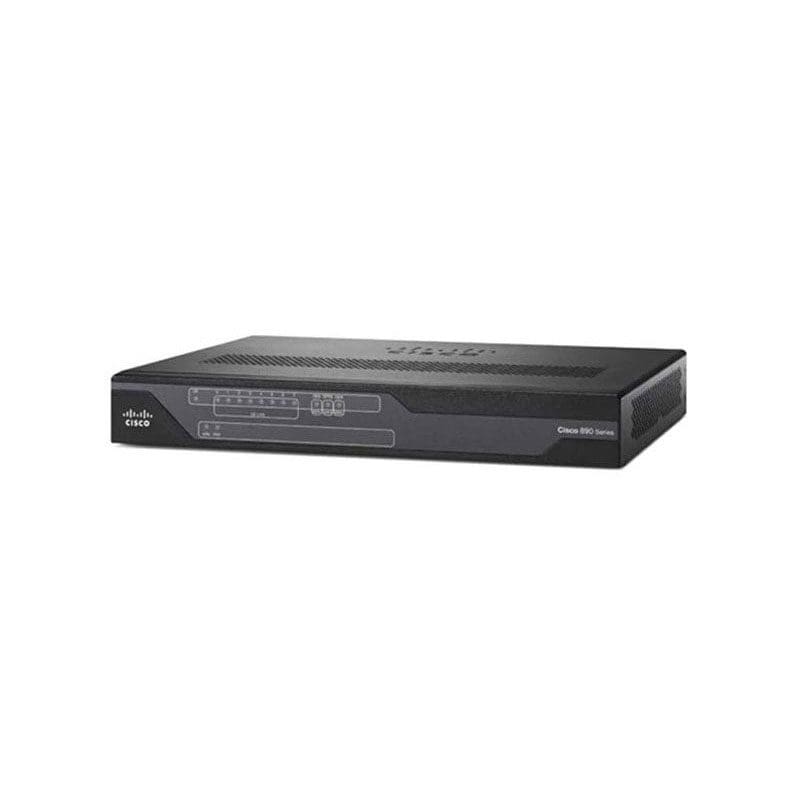

Cisco 887 VDSL/ADSL Multi-Mode Router
General
Device Type Router – 4-port switch (integrated)
Enclosure Type Desktop
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet
Capacity IPSec VPN tunnels: 20
Network / Transport Protocol L2TP, DHCP
Routing Protocol RIP-1, RIP-2, HSRP, VRRP, GRE, policy-based routing (PBR)
Remote Management Protocol Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI
Encryption Algorithm DES, Triple DES, PKI, 128-bit AES, 192-bit AES, 256-bit AES
Authentication Method RADIUS, TACACS+
Features NAT support, auto-uplink (auto MDI/MDI-X), MAC address filtering, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, DNS proxy, fanless, DHCP relay, DHCP client, Class of Service (CoS)
Compliant Standards IEEE 802.1D, IEEE 802.1Q, CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN55022 Class B, EN 61000-6-1, EN 60555-2, FCC CFR47 Part 15, FCC CFR47 Part 15 B, VCCI V-3, KN22, EN 300386
RAM 256 MB (installed) / 768 MB (max)
Flash Memory 256 MB (installed) / 256 MB (max)
Status Indicators Port status, power
Line Properties
Framing Format ANSI T1.413
Expansion / Connectivity
Interfaces LAN: 4 x 10Base-T/100Base-TX – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ WAN: 1 x ADSL2+ ¦ USB: 1 x 4 pin USB Type A ¦ WAN: 1 x VDSL2
Power
Power Device External power adapter – 60 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Software / System Requirements
OS Provided Cisco IOS Advanced Security
