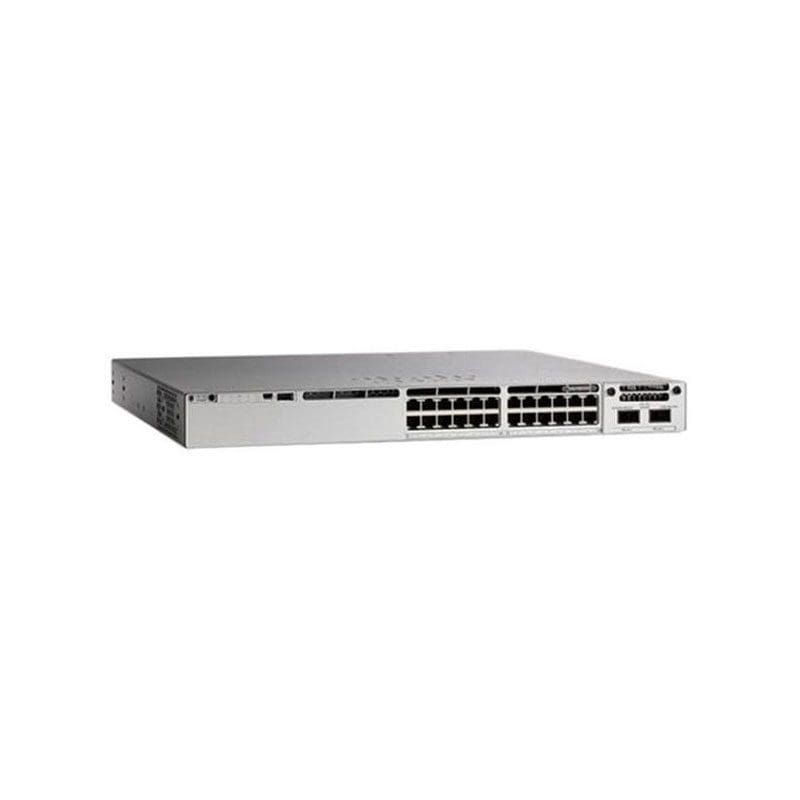

C9200-24P-EDU Technical Specifications
Cisco Catalyst 9200 Switch 24 Ports Smart Rack Mountable
Cabinet
Chassis Built-in Devices : RFID tag
Capacity
Type : ACL scale entries
Value : 1600
Type : IPv4 routing table entries
Value : 4000
Type : IPv6 routing table entries
Value : 2000
Type : Packet buffer size
Value : 6 MB
Type : Switched virtual interfaces (SVIs)
Value : 1000
Type : Virtual networks
Value : 4
Type : VLAN IDs
Value : 4096
Dimensions & Weight
Depth : 17.5 in
Height : 13.8 in
Weight : 12.13 lbs
Width : 1.7 in
Environmental Parameters
Humidity Range Operating : 5 – 90% (non-condensing)
Humidity Range Storage : 5 – 90% (non-condensing)
Max Storage Temperature : 158 °F
Min Storage Temperature : -40 °F
Flash Memory
Installed Size : 4 GB
Header
Brand : Cisco
Manufacturer : CISCO DS HARDWARE DIRECT
Model : 9200
Packaged Quantity : 1
Product Line : Cisco Catalyst
