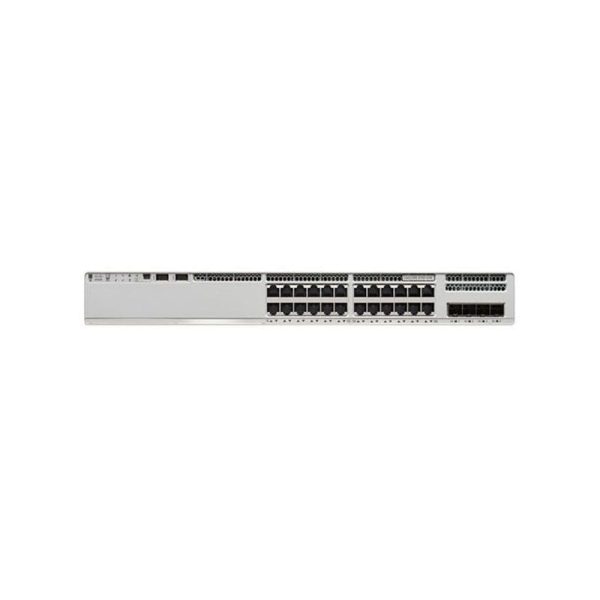

C9200-24T-A Technical Specifications
Cisco Switch Catalyst 9200
Product Line Cisco Catalyst
Product Series C9200
Downlinks total 10/100/1000 or PoE+ copper ports: 24 ports data
Uplink configuration: Modular uplink options
Default primary AC power supply: PWR-C5-125WAC
Fans: FRU redundant
Software: Network Advantage
Chassis Dimensions: 1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm
Weight: 5.0 Kg
Virtual Networks: 4
Stacking bandwidth: 160 Gbps
Total number of MAC addresses: 32,000
Total number of IPv4 routes (ARP plus learned routes): 14,000 (10,000 direct routes and 4,000 indirect routes)
IPv4 routing entries: 4,000
IPv6 routing entries: 2,000
Multicast routing scale: 1,000
QoS scale entries: 1,000
ACL scale entries: 1,600
