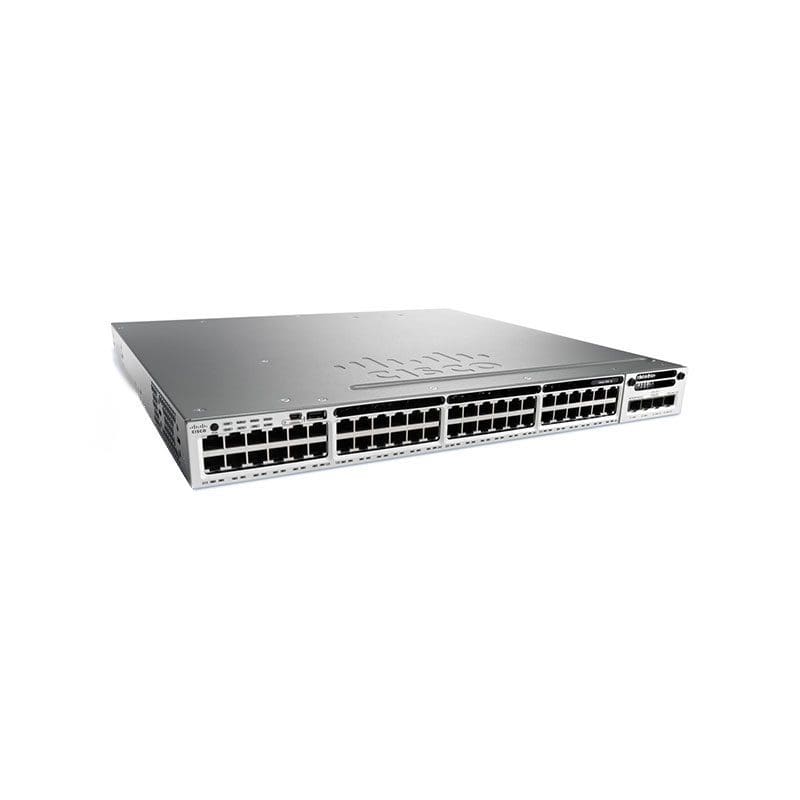

Refurbished C9200-48P-E Technical Specification
Cisco Catalyst 9200 Essential Edition Switch
General
Device Type Switch – 48 ports – smart – stackable
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE) PoE+
PoE Budget 740 W
Performance Wireless bandwidth: up to 48 Gbps | Switching capacity: 176 Gbps | Forwarding rate: 261.9 Mpps
Capacity Virtual networks: 4 | MAC addresses: 32000 | IPv4 routes: 14000 | Indirect IPv4 routes: 4000 | Direct IPv4 routes: 10000 | IPv4 routing table entries: 4000 | IPv6 routing table entries: 2000 | Multicast scale: 1000 | ACL scale entries: 16000 | Packet buffer size: 6 MB | Flexible NetFlow entries: 16000 | VLAN IDs: 1000
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol NETCONF, RESTCONF
Features Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Flexible NetFlow (FNF), MACsec support, Control plane protection (CoPP), Sampled NetFlow, Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), First Hop Security (FHS), DNA support
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz
RAM 4 GB
Flash Memory 4 GB
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45 PoE+ – 30 W
Power
Power Device Internal power supply – hot-plug
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Provided 1000 Watt
Voltage Required AC 100-240 V
Miscellaneous
MTBF 375,570 hours
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Software / System Requirements
OS Required Cisco IOS XE 16.9.2 or later
Dimensions & Weight
Width 17.5 in
Depth 1.7 in
Height 13.8 in
Weight 12.13 lbs
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
