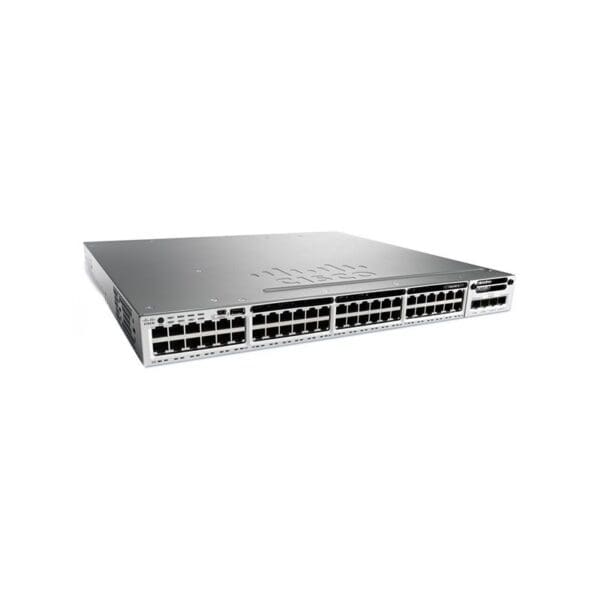

C9200-48P-E, Cisco Switch Catalyst 9200

C9200-48P-E Overview

C9200-48P-E is the Catalyst 9200 48-port PoE+ Switch, with Network Essentials software. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.


Buy Now
Availability: In Stock

C9200-48P-E Technical Specifications

Cisco Switch Catalyst 9200

Product Line Cisco Catalyst
Product Series C9200
Downlinks total 10/100/1000 or PoE+ copper ports: 48 ports full PoE+
Uplink configuration: Modular uplink options
Default primary AC power supply: PWR-C5-1KWAC
Fans: FRU redundant
Softwar: Network Essentials
Chassis Dimensions: 1.73 x 17.5 x 13.8 in – 4.4 x 44.5 x 35.0 cm
Weight: 5.5 Kg
Virtual Networks: 4
Stacking bandwidth: 160 Gbps
Total number of MAC addresses: 32,000
Total number of IPv4 routes (ARP plus learned routes)
14,000 (10,000 direct routes and 4,000 indirect routes)
IPv4 routing entries: 4,000
IPv6 routing entries: 2,000
Multicast routing scale: 1,000
QoS scale entries: 1,000
ACL scale entries: 1,600
Packet buffer per SKU: 6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries: 16,000 flows on 24- and 48-port Gigabit Ethernet models
Flash: 4 GB
VLAN IDs: 4096
Total Switched Virtual Interfaces (SVIs): 1000
Jumbo frames: 9198 bytes
Wireless bandwidth per switch: Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model
Switching capacity: 176 Gbps
Forwarding rate: 261.9 Mpps
Mean time between failures (hours): 375,570
