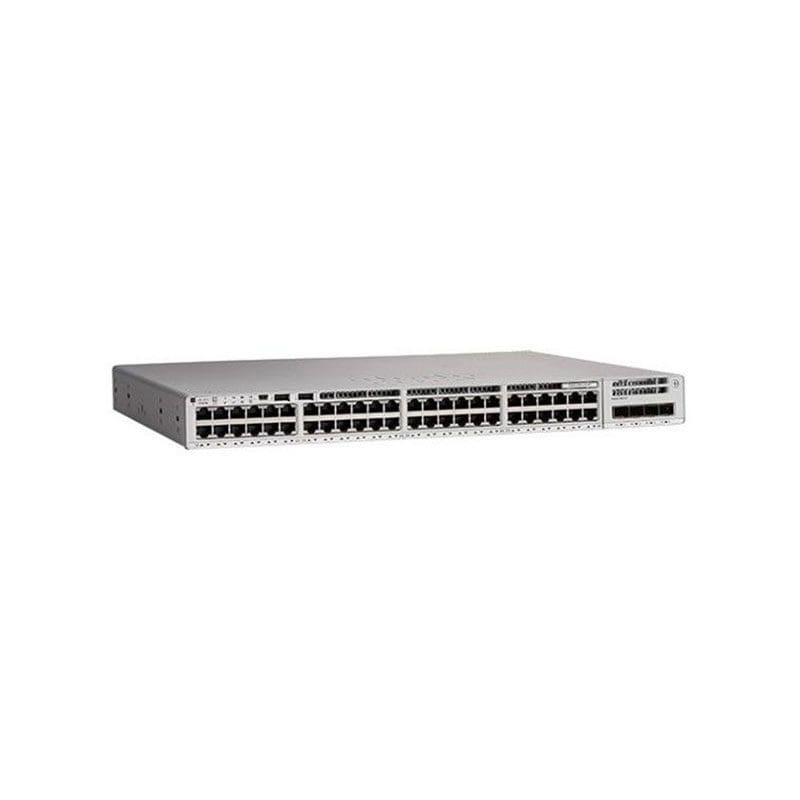

Refurbished C9200-48T-E Cisco Catalyst 9200 Network Essentials Switch

Refurbished C9200-48T-E Overview

Cisco Catalyst 9200 – Network Essentials – switch – 48 ports – managed – rack-mountable

Availability: In Stock
SKU:C9200-48T-E-RF
Brand:

Refurbished C9200-48T-E Technical Specification

Cisco Catalyst 9200 Network Essentials Switch

General
Device Type Switch – 48 ports – L3 – managed – stackable
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000
Performance Stacking bandwidth: 160 Gbps | Switching bandwidth: 176 Gbps | Forwarding rate: 261.9 Mpps
Capacity Virtual networks: 4 | IPv4 routing table entries: 4000 | IPv6 routing table entries: 2000 | Flexible NetFlow entries: 16000 | Packet buffer size: 6 MB | VLAN IDs: 4096 | Switched virtual interfaces (SVIs): 1000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm 128-bit AES
Features ARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), Cisco StackWise-160 technology, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
RAM 4 GB
Flash Memory 4 GB
Expansion / Connectivity
Interfaces 48 x 10/100/1000 Base-T RJ-45 | 1 x network stack device | 1 x management (LAN) RJ-45 | 1 x console RJ-45
Expansion Slots 1 (total) / 1 (free) x expansion slot
Power
Power Device Internal power supply – hot-plug
Installed Qty 2 (max)
Power Redundancy Optional
Power Provided 125 Watt
Voltage Required AC 100-240 V (50 – 60 Hz)
Miscellaneous
MTBF 571,440 hours
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Dimensions & Weight
Width 17.5 in
Depth 13.8 in
Height 1.7 in
Weight 11.02 lbs
Environmental Parameters
Humidity Range Operating 5 – 90% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 – 90% (non-condensing)
