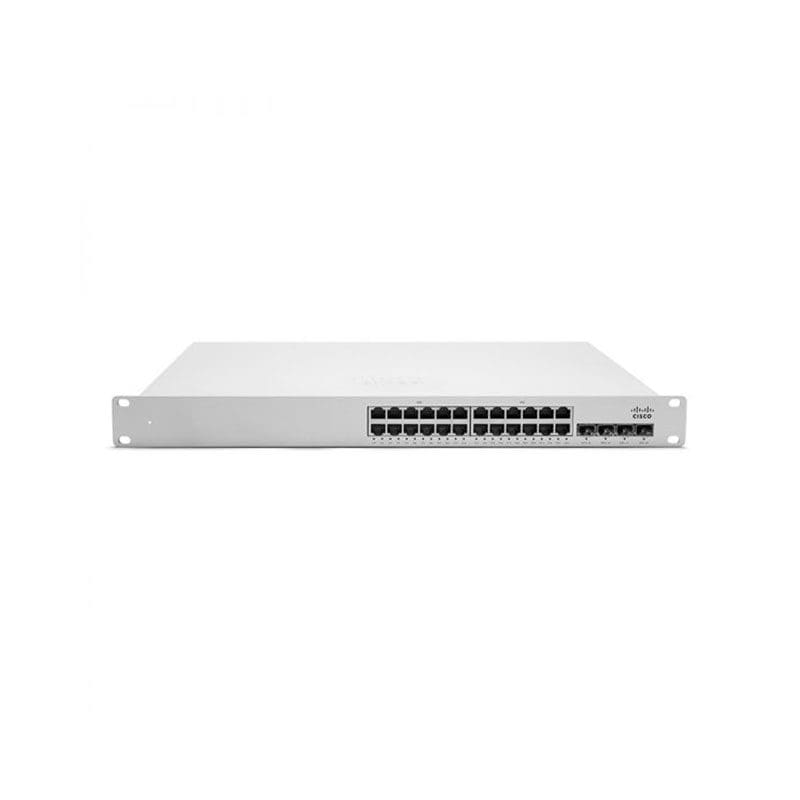

C9300-24UB-A Technical Specifications
Catalyst 9300 higher scale 24-port modular uplinks UPOE, Network Advantage
Header
Brand :Cisco
Manufacturer :Cisco
Model :C9300-48UB-E
Product Line :Cisco Catalyst
Product Series : C9300
Port: 24 Port
Performance
Switching capacity: 208 Gbps
Switching capacity with stacking: 688 Gbps
Forwarding rate: 154.76 Mpps
Forwarding rate with stacking: 511.90 Mpps
Total number of MAC addresses: 64,000
Total number of IPv4 routes (ARP plus learned routes): 64,000
IPv6 routing entries: 32,000
Multicast routing scale: 16,000
QoS scale entries: 18,000
ACL scale entries: 18,000
DRAM: 16 MB
Flash: 16 GB
VLAN IDs: 4094
Total Switched Virtual Interfaces (SVIs): 4094
Jumbo frames: 9198 bytes
Total routed ports per 9300 Series stack: 448
