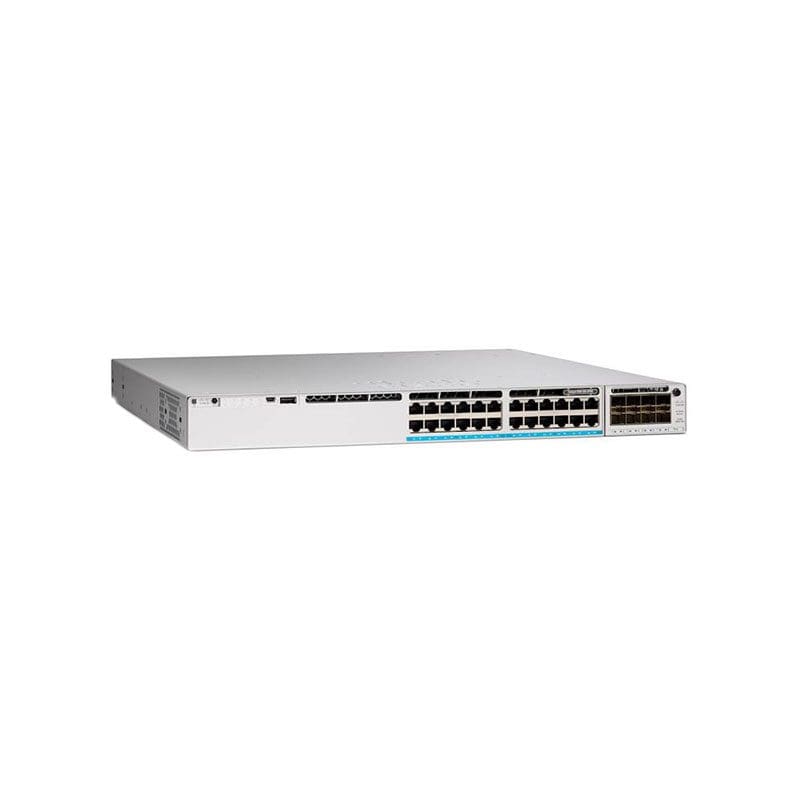

C9300-24UX-10A Cisco Catalyst 9300 Network Advantage Switch 24 Port

C9300-24UX-10A Overview

The Catalyst 9300 series is an advanced stackable switching platform. These network switches are built for security, IoT, and the cloud.

Availability: In Stock
SKU:C9300-24UX-10A
Brand:

C9300-24UX-10A Technical Specifications

Cisco Catalyst 9300 Network Advantage Switch 24 Ports Managed

Capacity
Type : Flexible NetFlow entries
Value : 128000
Type : IPv4 routing table entries
Value : 32000
Type : IPv6 routing table entries
Value : 16000
Type : Packet buffer size
Value : 32 MB
Type : Switched virtual interfaces (SVIs)
Value : 2000
Type : VLAN IDs
Value : 4000
Dimensions & Weight
Depth : 20.2 in
Height : 1.7 in
Weight : 18.19 lbs
Width : 17.5 in
Environmental Parameters
Humidity Range Operating : 5 – 90% (non-condensing)
Humidity Range Storage : 5 – 90% (non-condensing)
Max Operating Temperature : 113 °F
Max Storage Temperature : 158 °F
Min Operating Temperature : 23 °F
Min Storage Temperature : -40 °F
Flash Memory
Installed Size : 16 GB
Header
Brand : Cisco
Edition : Network Advantage
Manufacturer : CISCO DS HARDWARE DIRECT
Model : 9300
Packaged Quantity : 1
Product Line : Cisco Catalyst
