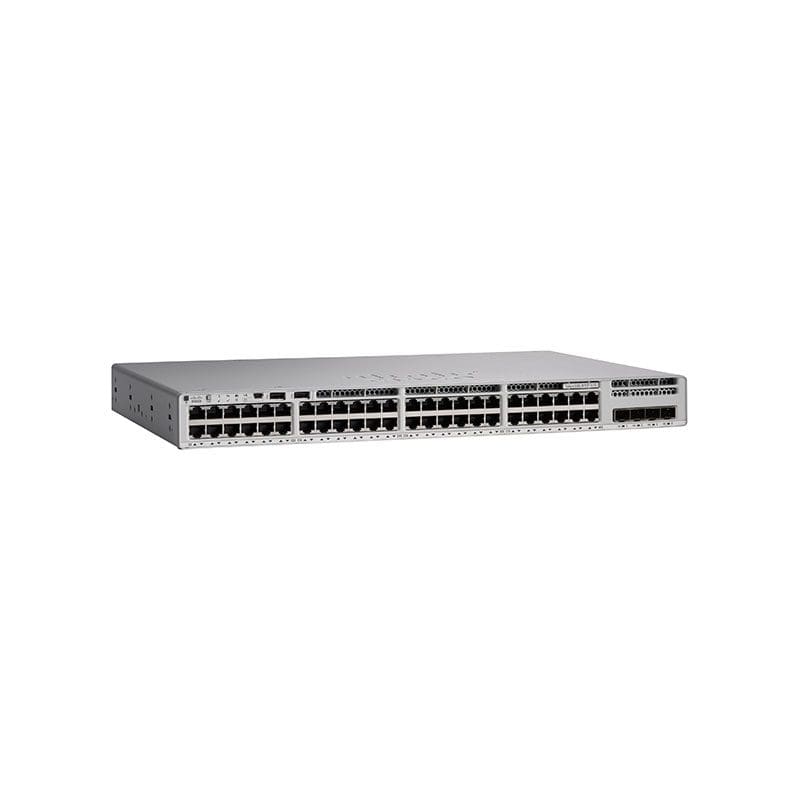

C9300L-48P-4G-A Cisco Catalyst 9300L Switch 48 Port

C9300L-48P-4G-A Overview

The Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access)



Buy Now
Availability: In Stock

C9300L-48P-4G-A Technical Specifications

Cisco Catalyst 9300L Network Advantage switch 48 port

Type :ACL scale entries
Type :FNF entries
Value :64000
Type :IPv4 routes
Value :32000
Type :IPv6 routes
Value :16000
Type :Multicast scale
Value :8000
Type :Packet buffer size
Value :16 MB
Type :QoS scale entries
Value :5120
Type :Switched virtual interfaces (SVIs)
Value :1000
Type :Virtual networks
Value :64
Type :VLANs supported
Value :4094
Dimensions & Weight
Depth :1.7 in
Height :16.1 in
Weight :15.5 lbs
Width :17.5 in
Environmental Parameters
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :5 – 90% (non-condensing)
Max Operating Temperature :113 °F
Max Storage Temperature :158 °F
Min Operating Temperature :23 °F
Min Storage Temperature :-40 °F
