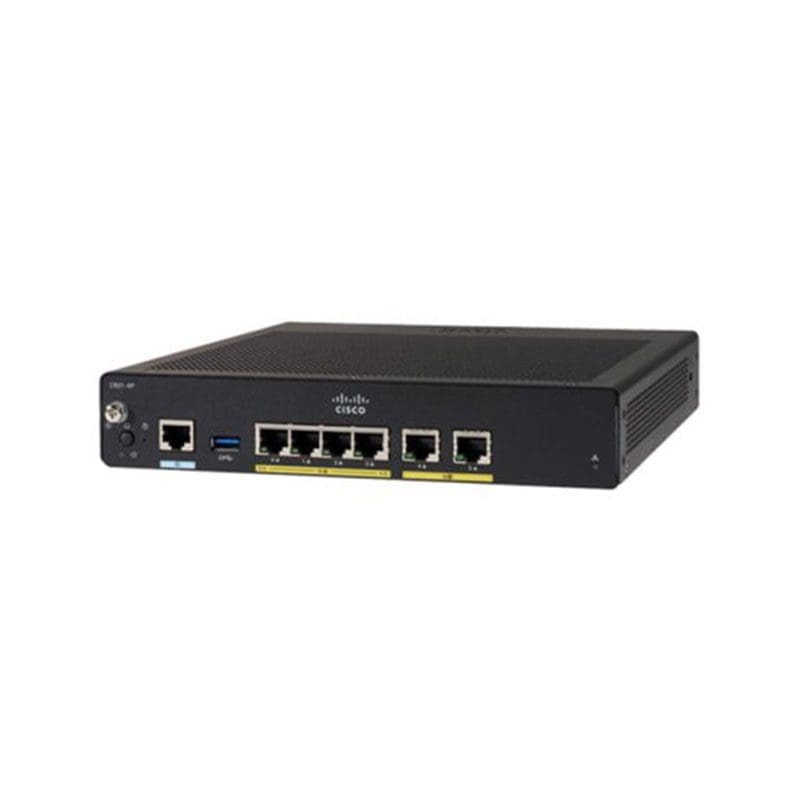

C931-4P – Cisco 931 Gigabit Ethernet Security Router

SKU: C931-4P Categories: , Tags: , , , , , GTIN: 0889728172097

C931-4P Overview

C931-4P is the Cisco 931 Gigabit Ethernet security router with internal power supply. Cisco 900 Series ISRs deliver integrated security and threat defense, protecting networks from both known and new Internet vulnerabilities and attacks. These powerful, fixed-configuration routers provide secure broadband and Metro Ethernet connectivity. Service providers offering managed Ethernet WAN services can deploy them in customer locations as CPE. Centralized and remote management capabilities are available through web-based tools and Cisco IOS® Software for full visibility and control of network configurations at the remote site. The 900 Series ISRs simplify the deployment of Ethernet WAN services, with end-to-end Operations, Administration, and Maintenance (OA&M), Service-Level Agreement (SLA) monitoring and verification, and configuration management. This series ISRs come with a 4-port managed switch, providing LAN ports to connect multiple devices.

C931-4P Technical Specifications

Cisco 931 Gigabit Ethernet security router

Dimensions & Weight
Depth : 9.5 in
Height : 1.7 in
Width : 9 in
Environmental Parameters
Humidity Range Operating : 5 – 95% (non-condensing)
Max Operating Temperature : 122 °F
Min Operating Temperature : 32 °F
Header
Brand : Cisco
Manufacturer : CISCO DS HARDWARE DIRECT
Product Series Cisco 931
Model : C931
Packaged Quantity : 1
Product Line : Cisco Integrated Services Router
Interface Provided
Connector Type : 4 pin USB Type A
Type : USB 2.0
Connector Type : RJ-45
Interface : Ethernet 10Base-T/100Base-TX/1000Base-T
Qty : 2
Type : WAN
Interface : Console
Qty : 1
Type : Management
Qty : 4 LAN
Type : LAN
Miscellaneous
Authentication Method : RADIUS, Secure Shell (SSH), TACACS+
Color Category : Black
Compliant Standards : AS/NZS 60950-1, CAN/CSA C22.2 No. 60950-1, CISPR 22:2008, CISPR 24:2010, CNS13438:2006, EN 300 386 V1.6.1, EN 300386, EN 55032, EN 60950-1, EN 61000-6-1, EN55024:2010, EN61000-3-2:2006, EN61000-3-3:2008, FCC CFR47 Part 15, ICES-003:2012 Issue 5, IEC 60950-1, KN22:2009, KN24, TCVN 7189, TCVN 7317, UL 60950-1, VCCI V-3
Encryption Algorithm : 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, PKI, SSL, Triple DES
OS Provided
Type : Cisco IOS IP Base
Power Device
Frequency Required : 50/60 Hz
Nominal Voltage : AC 120/230 V
Type : Internal power supply
Processor
Clock Speed : 2.2 GHz
Flash Memory
Installed Size : 2 GB
Networking
Compliant Standards : IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x
Connectivity Technology : Wired
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Access Control List (ACL) support, Auto-uplink (auto MDI/MDI-X), Cisco IP Service-Level Agreement (IP SLA), Cisco Next Generation Plug-and-Play (NG PnP) Protocol, Class-Based Traffic Policing (CBTP), Class-Based Traffic Shaping (CBTS), Class-Based Weighted Fair Queuing (CBWFQ), Class-Based Weighted Random Early Detection (CBWRED), DHCP client, DHCP relay, DHCP server, DiffServ Code Point (DSCP) support, DiffServ support, DNS proxy, Dynamic Multipoint VPN (DMVPN), Embedded Event Manager (EEM), Flexible NetFlow (FNF), Hierarchical Quality of Service (HQoS), IGMP snooping, Link Fragmentation and Interleaving (LFI), Low-latency queuing (LLQ), MAC address filtering, Management Information Base (MIB), Multigroup HSRP (MHSRP), NAT support, Neighbor Discovery Protocol (NDP), Network-Based Application Recognition (NBAR), Network-Based Application Recognition (NBAR) 2, Performance Routing (PfR), Quality of Service (QoS), SmartPort technology, Storm Control, Switched Port Analyzer (SPAN), Virtual Route Forwarding-Lite (VRF-Lite), VPN client, VPN Server, Weighted Fair Queuing (WFQ)
Form Factor : Desktop
Integrated Switch : 4-port switch
Key Features : Firewall, USB port, VPN support
Network Transport Protocol : cRTP, DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP/IP, IPSec, L2TP, L2TPv3, RSVP, RTP
Remote Management Protocol : CLI, HTTP, HTTPS, SNMP 3, SSH, Telnet
Routing Protocol : BGP, BGP-4+, Bidirectional Forwarding Detection (BFD), EIGRP, GRE, HSRP, IGMPv3, MGRE, NHRP, OSPF, OSPFv3, Policy-based routing (PBR), RIP-1, RIP-2, RSVP, STP, VRRP, WCCP
Type : Router
WAN Ports Qty : 2
RAM
Installed Size : 1 GB
