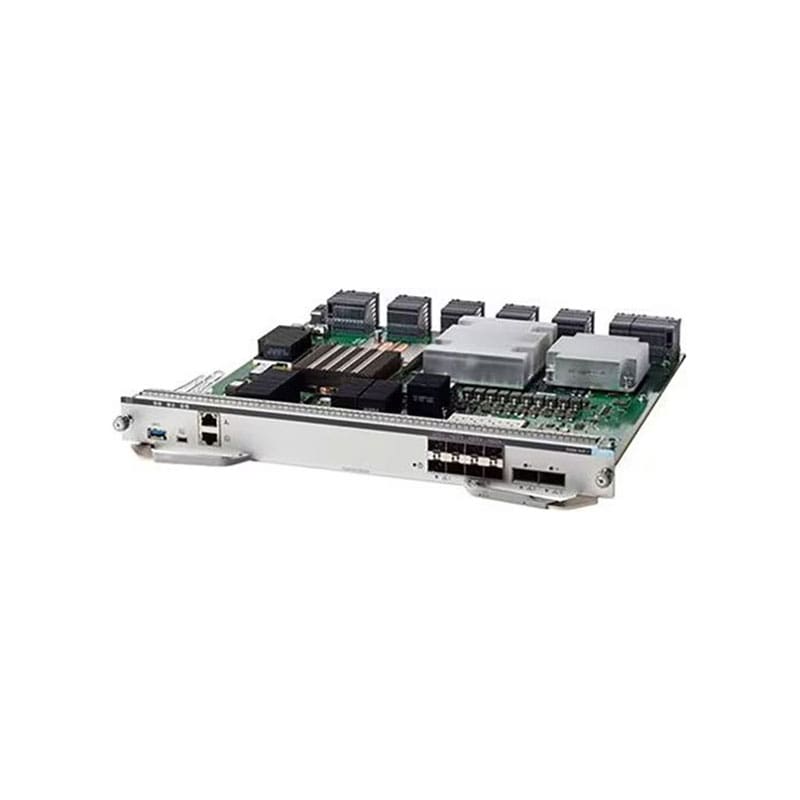

C9400-SUP-1XL-B Cisco Supervisor-1XL Module Control Processor

C9400-SUP-1XL-B Technical Specifications

Cisco Supervisor-1XL Module Control Processor

Brand: Cisco
Product Line: Cisco
Model: Supervisor-1XL Module
Manufacturer: CISCO DS HARDWARE DIRECT
Processor
Clock Speed: 2.4 GHZ
Processor Brand: Intel
Memory
Flash Memory Installed: 10 GB
RAM Installed: 16 GB
Storage
Hard Drive Capacity: 960 GB
Port Expansion Hard Drive Type: SSD
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
Form Factor: Plug-in module
Connectivity
Interface Provided: 1 x 1000Base-T (management) – RJ-45, 1 x console – RJ-45, 1 x management (mini-USB)
Technical Information
Max Operating Temperature: 113 degree Fahrenheit
Min Operating Temperature: 23 degree Fahrenheit
Operating Humidity: 10 – 95% (non-condensing)
Product Information
Packaged Quantity: 1
Dimensions & Weight
Height: 1.6 inch
Weight: 9.92 lbs
Width: 14.9 inch
Depth: 14.6 inch
Physical Characteristics
Color Category: White
