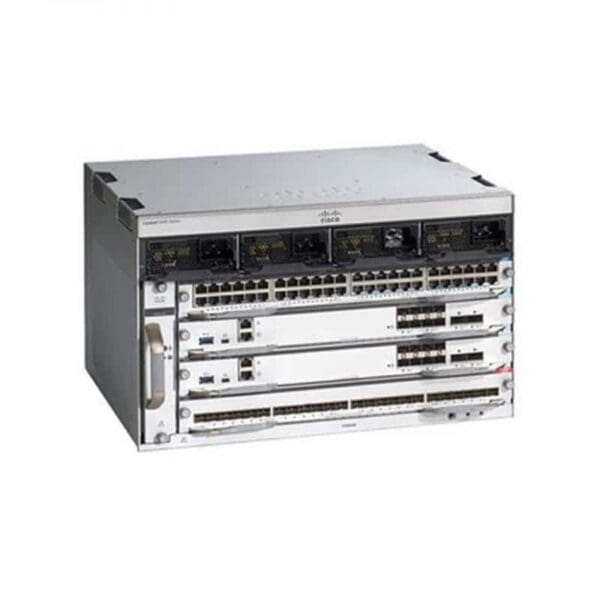

C9404R Cisco Catalyst 9404R Switch Rack-Mountable

C9404R Overview

The Catalyst 9400 series chassis is enterprise optimized with efficient side-to-side airflow and full front accessibility for all removable components, including supervisors, line cards, power supplies and fan tray. The chassis also supports optional rear accessibility for fan trays to enable efficient cable management.

C9404R Technical Specifications

Cisco Catalyst 9404R Switch Rack-Mountable

Slot Provided
Free Qty :2
Total Qty :2
Type :Supervisor slot
Free Qty :4
Total Qty :4
Type :Line-card slot
Features :Fan tray, Side to side airflow
Form Factor :Rack-mountable
Subcategory :Network hubs and switches
Type :Switch
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CNS 13438 Class A, EN 300 386, EN 300 386 V1.6.1, EN 50121-4, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55024, ETS 300 019-2-1 Class 1.2, ETS 300 019-2-2 Class 2.3, ETS 300 019-2-3 Class 3.2, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, KN32 Class A, KN35, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, V-3 Class A
Height (Rack Units) :6
Environmental Parameters
Humidity Range Operating :10 – 95% (non-condensing)
Humidity Range Storage :10 – 95% (non-condensing)
Max Operating Temperature :113 °F
Max Storage Temperature :158 °F
Min Operating Temperature :23 °F
Min Storage Temperature :-40 °F
Brand :Cisco
Model :9404R
Packaged Quantity :1
Product Line :Cisco Catalyst
Power Device
Hot-Plug :Hot-plug
Installed Qty :0
Max Supported Qty :4
Nominal Voltage :AC 120/230 V
Power Redundancy :Optional
Power Redundancy Scheme :N+N (with optional power supply)
Type :Internal power supply
Dimensions & Weight
Depth :16.3 in
Height :10.4 in
Weight :37.92 lbs
Width :17.3 in
