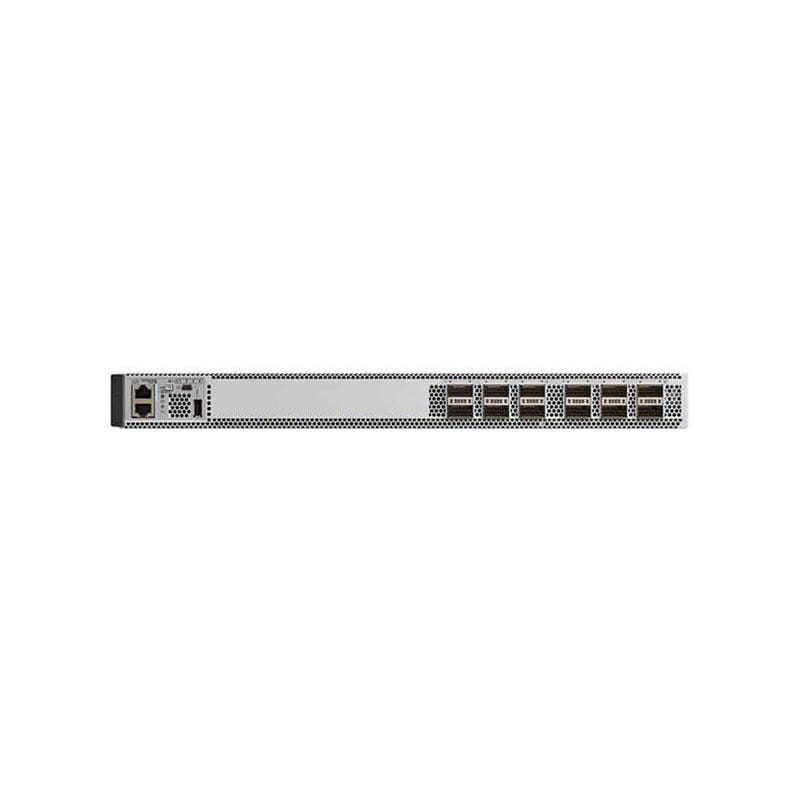

Refurbished C9500-12Q-EDU Technical Specification
Cisco Catalyst 9500 Switch 12 Ports
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Catalyst
Model :9500
Packaged Quantity :1
Chassis
Built-in Devices :RFID tag
Processor
Installed Qty :1
Clock Speed :2.4 GHZ
RAM
Installed Size :16 GB
Flash Memory
Installed Size :16 GB, 16 GB
Performance
Performance :Forwarding rate: 720 Mpps, Switching capacity (full duplex): 480 Gbps
Capacity
Capacity :FNF entries: 512000, Host IPv4 routes: 32000, Host IPv6 routes: 16000, Indirect IPv4 routes: 64000, Indirect IPv6 routes: 32000, Multicast scale: 48000, QoS ACL scale: 18000, Security ACL scale: 18000, Switched virtual interfaces (SVIs): 4000, VLAN IDs: 4000
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :40 Gigabit Ethernet
Form Factor :Rack-mountable
Stackable :Stackable
Ports Qty :12
Advanced Switching :Layer 3
Routing Protocol :IGMP, OSPF, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
MAC Address Table Size :64K entries
Jumbo Frame Support :9198 bytes
Manageable :Yes
Remote Management Protocol :NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Status Indicators :Status
Features :802.1x authentication, CoAP support, Control plane protection (CoPP), First Hop Security (FHS), Flexible NetFlow (FNF), IPv6 support, MACsec support, Management Information Base (MIB), MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, NAT support, Private VLAN, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Secure boot, Spanning Tree Protocol (STP) support, Stateful switchover (SSO), Switched Port Analyzer (SPAN), VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED), Zero-touch provisioning (ZTP)
Compliant Standards :IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
Ports
Qty :12
Interface Provided
Interfaces :12 x 40Gbit LAN QSFP
Software
Type :Cisco IOS Universal, ONE Essentials Low Term
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Power Redundancy Scheme :1+1
Installed Qty :2
Max Supported Qty :2
Power Provided :950 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50 – 60 hertz
Features :Front-to-rear air?ow
Miscellaneous
Color Category :Gray
Pricing Type :K-12 education
Height (Rack Units) :1
Encryption Algorithm :256-bit AES
MTBF :179,660 Hours
Compliant Standards :AS/NZS 60950-1, AS/NZS CISPR22:2004 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, EN 300 386, EN 300386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, GB 4943, ICES-003 Class A, IEC 60950-1, KN 61000-4, KN22 Class A, KN24, UL 60950-1, VCCI Class A
Dimensions & Weight
Width :17.5 inch
Depth :21.5 inch
Height :1.7 inch
Weight :25.75 lbs
