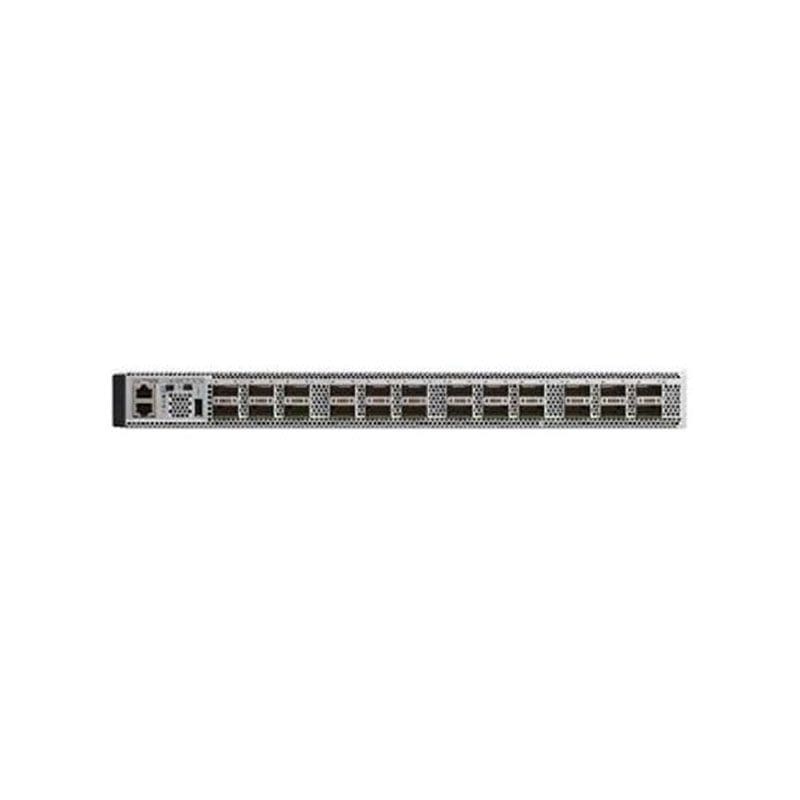

Refurbished C9500-24Q-A Cisco Catalyst 9500 24-port

Refurbished C9500-24Q-A Technical Specifications

Cisco Catalyst 9500 24-port 40G switch, Network Advantage

General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number C9500-24Q-A
Brand Name Cisco
Product Line Cisco Catalyst
Product Series C9500
Device Type Switch – 24 ports – L3 – managed
Enclosure Type Rack-mountable 1U
Subtype 40 Gigabit Ethernet
Ports 24 x 40 Gigabit SFP
Power Over Ethernet (PoE) UPOE
Performance Switching capacity (full duplex): 960 Gbps ¦ Forwarding rate: 1440 Mpps
Capacity Routing table entries: 64000 ¦ Indirect IPv4 routes: 64000 ¦ Host IPv4 routes: 32000 ¦ Indirect IPv6 routes: 32000 ¦ Host IPv6 routes: 16000 ¦ Multicast scale: 48000 ¦ QoS ACL scale: 18000 ¦ Security ACL scale: 18000 ¦ FNF entries: 512000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000
MAC Address Table Size 64K entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, IGMP, VRRP, PIM-SM, PIM-SSM, MSDP, RIPng, MPLS
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF
Encryption Algorithm 256-bit AES
Processor 1 x Intel: 2.4 GHz
RAM 16 GB – DIMM 288-pin – DDR4 SDRAM
Flash Memory 16 GB
Built-in Devices RFID tag
Expansion / Connectivity
Interfaces 24 x 40Gbit LAN SFP ¦ 2 x USB 3.0
Power Device Internal power supply – hot-plug
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1
Power Provided 950 Watt
Voltage Required AC 120/230 V (50 – 60 Hz)
