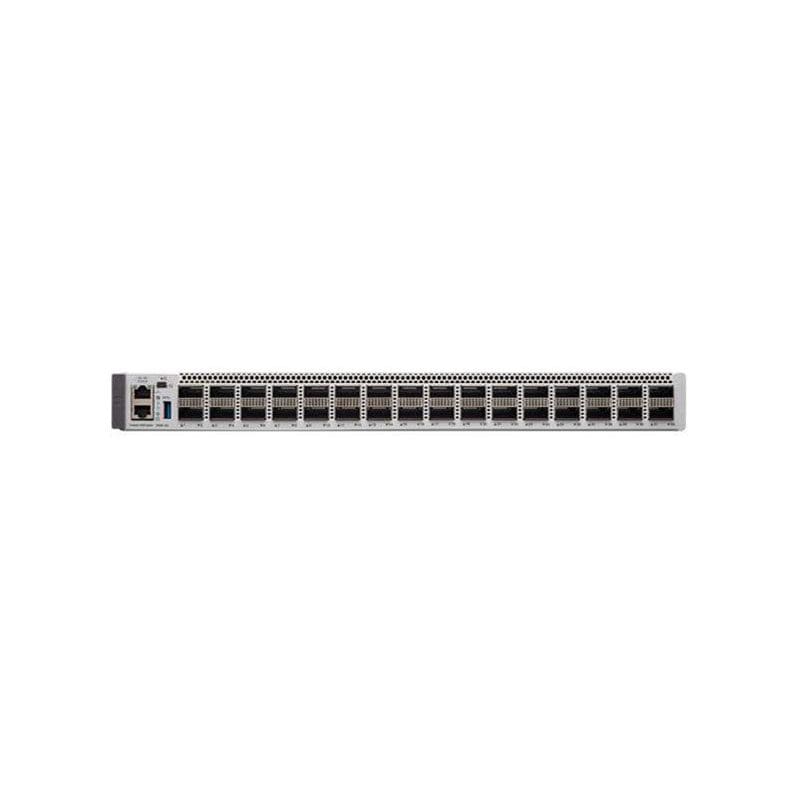

C9500-32QC-1E Cisco Catalyst 9500 Network Switch 32 Port
C9500-32QC-1E Overview
The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.
C9500-32QC-1E Technical Specifications
Cisco Catalyst 9500 Network Essentials Switch 32 Port Managed
Cabinet
Chassis Built-in Devices : RFID tag
Capacity
Type : ACL scale entries
Value : 16000
Type : ARP entries
Value : 90000
Type : Direct IPv4 routes
Value : 212000
Type : Direct IPv6 routes
Type : FNF entries
Value : 98000
Type : Indirect IPv4 routes
Type : Indirect IPv6 routes
Type : IPv4 routes (Multicast)
Value : 32000
Type : IPv6 routes (Multicast)
Type : Security ACL scale
Value : 27000
Type : Switched virtual interfaces (SVIs)
Type : VLAN IDs
Value : 4000
Dimensions & Weight
Depth : 18 in
Height : 1.7 in
Weight : 21.85 lbs
Width : 17.5 in
Environmental Parameters
Humidity Range Operating : 5 – 90% (non-condensing)
Humidity Range Storage : 5 – 95% (non-condensing)
Max Operating Temperature : 104 °F
Max Storage Temperature : 149 °F
Min Operating Temperature : 32 °F
Min Storage Temperature : -4 °F
