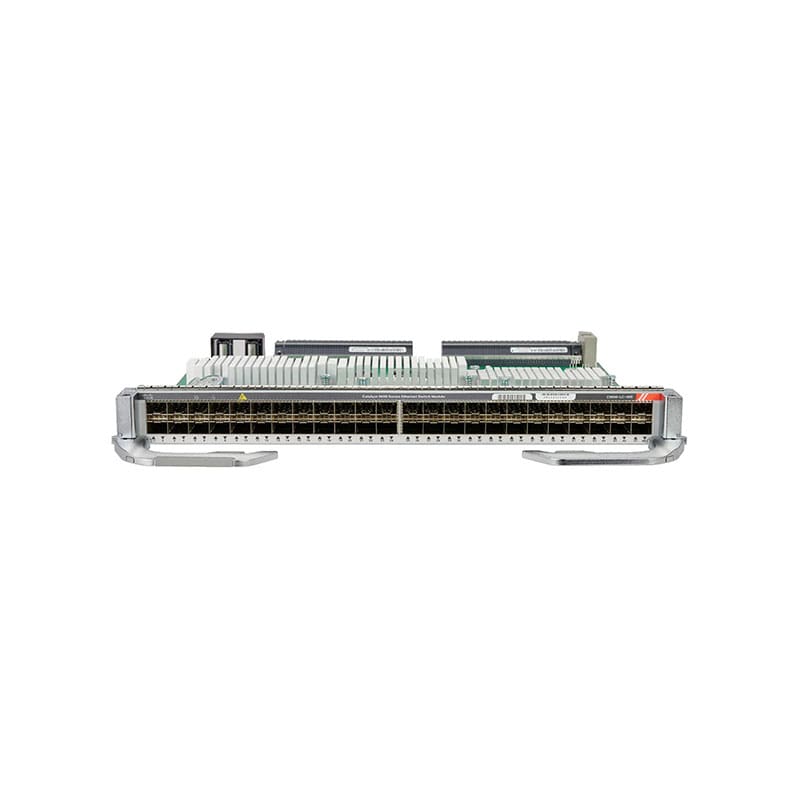

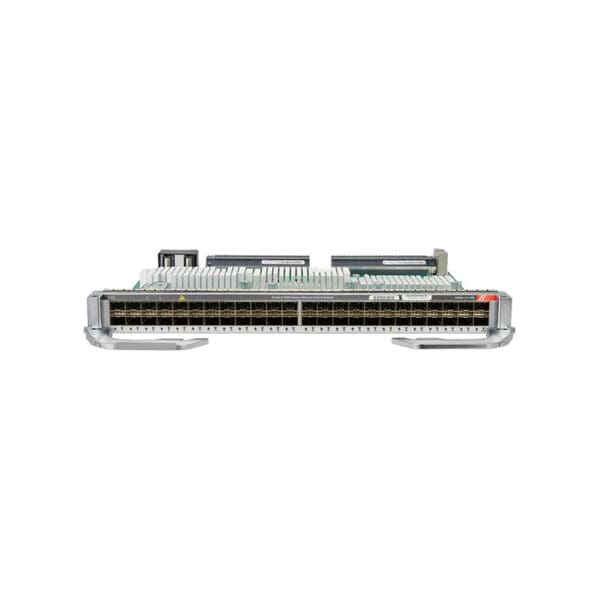

C9600-LC-48S Technical Specifications
Cisco Catalyst 9600 Series Line Card Switch 48 ports plug-in Module
Brand: Cisco
Product Line: Cisco Catalyst
Model: 9600 Series Line Card
Manufacturer:: CISCO DS HARDWARE DIRECT
Network & Communication
Compliant Standards: IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
Form Factor (Hubs & Switches): Plug-in module
Ports: 48
Product Type: Switch
Subcategory: Network hubs and switches
Connectivity
Interface Provided: 48 x 1000Base-X SFP
Port Quantity: 48
Port Type: Gigabit SFP
Technical Information
Encryption: 256-bit AES
Humidity Range Storage: 10 – 95% (non-condensing)
Max Operating Temperature: 113 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Min Operating Temperature: 23 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
MTBF: 640,750 Hours
Operating Humidity: 10 – 95% (non-condensing)
Operating System Required: Cisco IOS XE 17.2.1
Product Information
Packaged Quantity
1
Performance
Bandwidth: 96 Gbps
