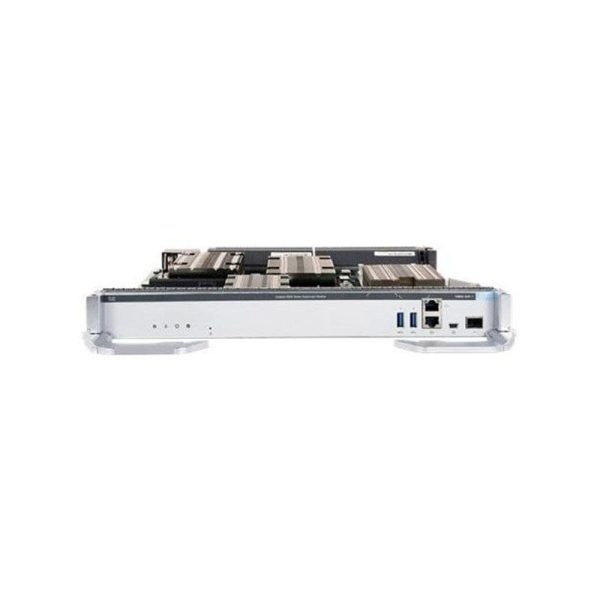

C9600-SUP-1 Cisco Catalyst 9600 Series Supervisor 1 Module

C9600-SUP-1 Technical Specifications

Cisco Catalyst 9600 Series Supervisor 1 Module Card for C9606R

Cisco Catalyst
Cisco C9600
Supervisor
For C9606R
System switching capacity: Up to 9.6 Tbps
Per-slot switching capacity: 2.4 Tbps
UADP ASICs: 3
Số số của địa chỉ MAC: Up to 82,000
FNF entries (IPv4 / IPv6): Up to 294,000 (98,000 per ASIC)
DRAM: 16 GB
Flash: 16 GB
VLAN IDs: 4094
PVST Instances: 1000
SSD capacity: Up to 960 GB
Total Switched Virtual Interfaces (SVIs): 1000
Jumbo frames: 9216
Forwarding rate: 3 Bpps (1 Bpps per ASIC)
Total number of IPv4 routes: Up to 212,000 (indirect + direct) 2,3
Total number of IPv6 routes: Up to 212,000 2,3
Address Resolution Protocol (ARP) entries: Up to 90,000
Multicast routes: Up to 32,000
QoS ACL Scale: Up 16,000
Security ACL Scale: Up 27,000
