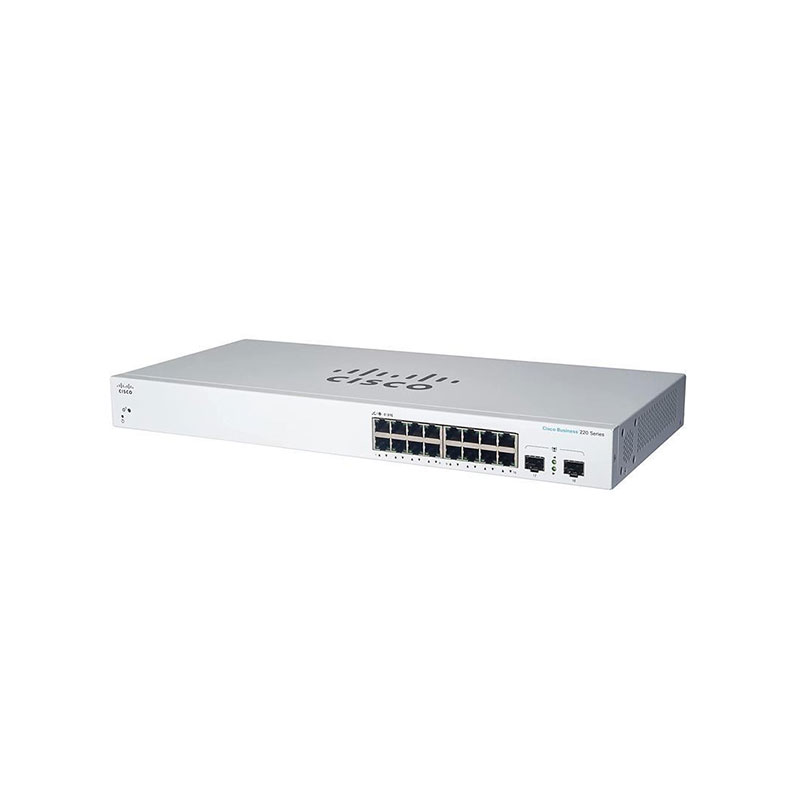

CBS220-16T-2G Technical Specifications
Cisco 16 x Ports RJ-45 + 2 x Ports SFP Network Switch
Manufacturer Part Number: CBS220-16T-2G
Brand Name: Cisco
Product Line: Business 220 Series
Product Type: Smart Managed Gigabit Ethernet Switch
Total Ports: 18
Gigabit Ethernet Ports: 16 x 10/100/1000Base-T RJ-45
Uplink Ports: 2 x 1G SFP
Switching Capacity: 36 Gbps
Forwarding Rate: 26.78 Mpps
Layer Support: Layer 2 / Layer 3 Lite
MAC Address Table: 8,000 entries
VLAN Support: Up to 256 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: STP, RSTP, MSTP
Static Routing: IPv4 / IPv6 Supported (Lite)
Link Aggregation: IEEE 802.3ad LACP (up to 8 groups)
Flow Control: IEEE 802.3x
Quality of Service: 4 Priority Queues, IEEE 802.1p, DSCP
Security: 802.1X, ACLs, Port Security, DoS Protection
Management: Web GUI, CLI, SNMP v1/v2c/v3, RMON
Port Mirroring: Supported
