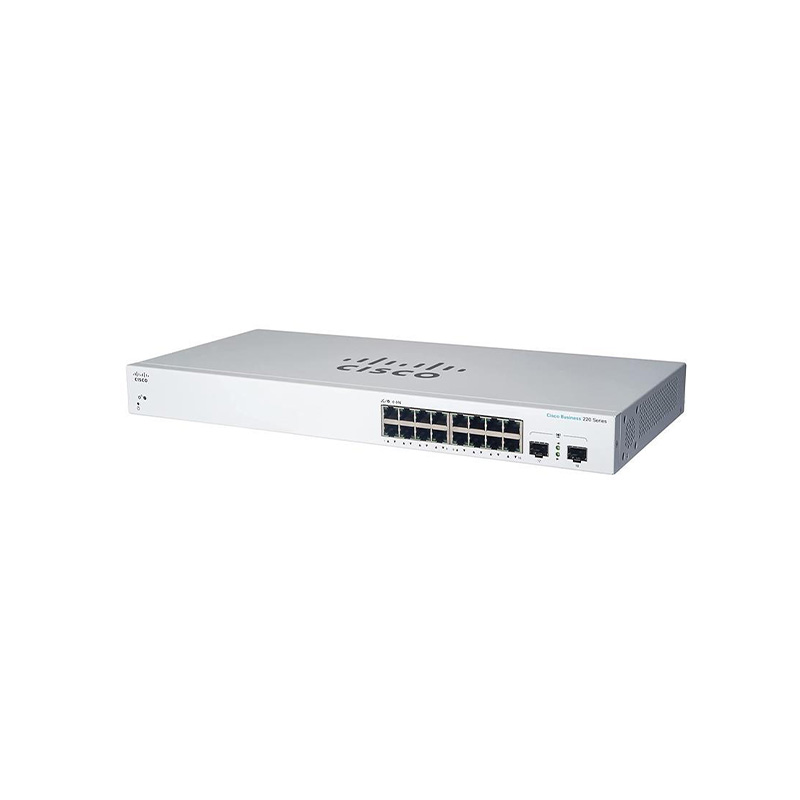

CBS220-24FP-4X Technical Specifications
Cisco Business 220 Series 24 x Ports PoE+ 10/100/1000Base-T + 4 x SFP+ Ports Layer 2 Managed Rack-mountable Gigabit Ethernet Network Switch
Manufacturer: Cisco
Manufacture Part Number: CBS220-24FP-4X
Type: Managed Gigabit Ethernet Switch
Ports: 24 x 10/100/1000Base-T RJ-45 with PoE+
Uplink Ports: 4 x 10 Gigabit SFP+
Switching Capacity: 128 Gbps
Forwarding Rate: 95.23 Mpps
Layer Support: Layer 2 (with static Layer 3 routing features)
PoE Power Budget: 370W total
Management: Web-based GUI, SNMP, CLI (basic), Cisco Business Dashboard
Security: 802.1X, ACLs, DHCP snooping, DoS protection
Features: VLANs, QoS, STP, LAG, loop prevention, IGMP snooping
Form Factor: 1U Rack-mountable
Cooling: Fan-based (to support high PoE load and 10G uplinks)
Power Supply: Internal
