CBS350-24T-4X Technical Specifications

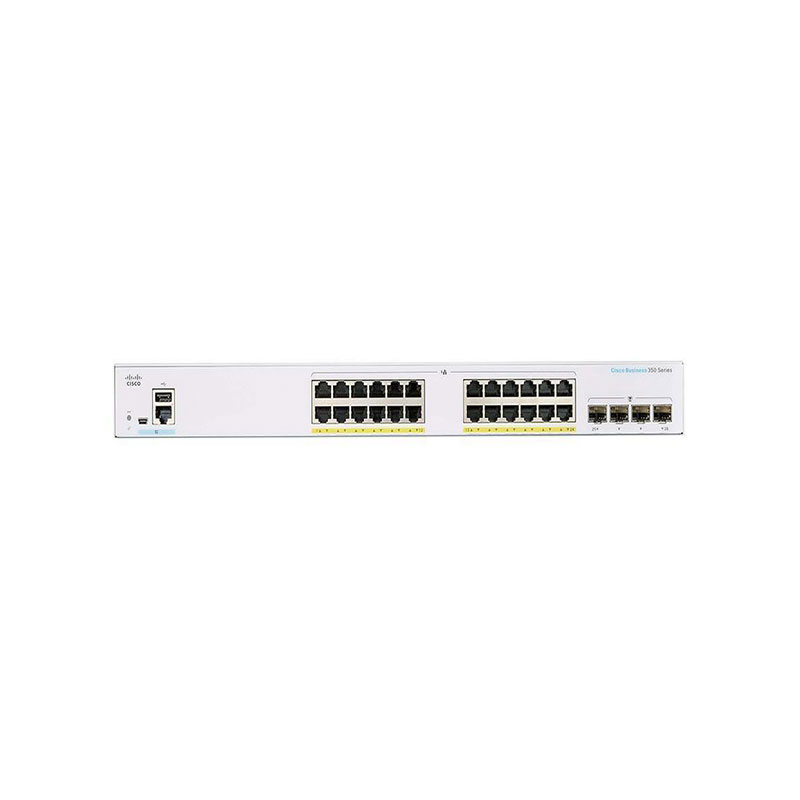

Cisco Business 350 Series 24 x Ports GE Switch
Part Number: CBS350-24T-4X
Series: Cisco Business 350 Series
Type: Layer 3 Managed Gigabit Ethernet Switch
Total Ports: 28
Gigabit Ethernet Ports: 24 x 10/100/1000 RJ-45
Uplink Ports: 4 x 10G SFP+
Switching Capacity: 128 Gbps
Forwarding Rate: 95.2 Mpps
MAC Address Table: 16,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: STP, RSTP, MSTP
Routing Protocols: IPv4/IPv6 Static Routing, RIP
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Queues, IEEE 802.1p, DSCP, CoS
Security: 802.1X, ACLs, Port Security, DHCP Snooping
Management: Web GUI, CLI, SNMP v1/v2c/v3, RMON, Syslog
Stacking Capability: Up to 4 units
Port Mirroring: Supported
LED Indicators: Power, System, Link/Activity, Speed
Form Factor: 1U Rack-mountable
