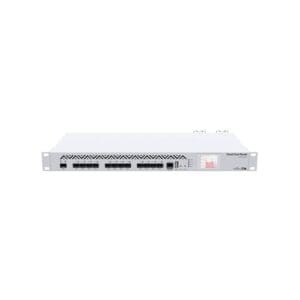

CCR1016-12S-1S+ Technical Specifications
MikroTik Router 12x SFP, 1x SFP+, 1x USB
Manufacture : MikroTik
Manufacture Part Number : CCR1016-12S-1S+
Number of LAN ports 12x [1G (SFP)] , 1x [10G (SFP+)] ,
Additional connectors / interfaces 1x USB, RS232,
CPU frequency 1,2 GHz
Management By web browser, CLI – Command Line Interface,
Number of CPU cores 16
RAM memory 2GB
Type of case Metal, Rack (1U),
Type of device power supply Power supply
Basic technical parameters
Processor Tile-Gx16 CPU, 16 cores, 1.2 GHz per core
Memory RAM 2 GB
Storage 128 MB NAND
Ports SFP 1G 12
Ports SFP+ 10G 1
Supported input voltage AC power supply 100 – 240 V
Redundant power supply Yes
USB port USB A
Serial port RJ45
Dimensions 443 × 198 × 44 mm
Operating temperature -20°C +60°C
Operating system RouterOS, license level 6
Maximum current consumption 48 W
