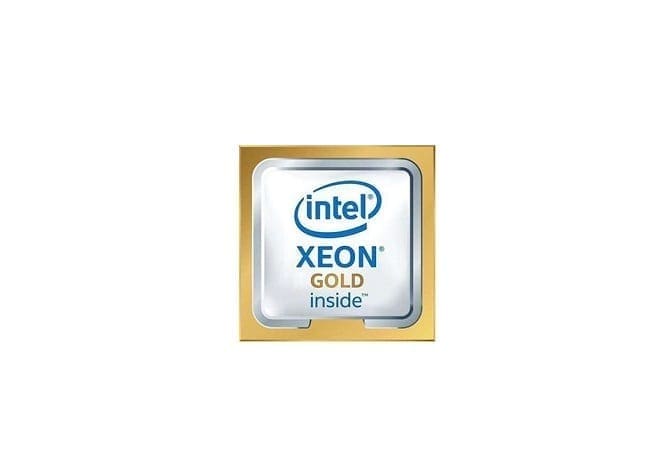

CD8069504193501 Intel Xeon Gold 5222 4-Core 3.80GHz 16.5MB

CD8069504193501 Technical Specifications

Intel Xeon Gold 5222 4-Core 3.80GHz 16.5MB Cache Socket FCLGA3647 Processor

Brand Intel
Part No. CD8069504193501
Processor Type Server
Processor Family 2nd Generation Intel Xeon Scalable Processors
Series Xeon Gold Processor
Core Model Type/ProcNo. 5222
Processor Code Name Cascade Lake
Core Stepping B1
Manufacturing Technology 14 nm
# of Cores 4
# of Threads 8
Clock Speed 3.80 GHz
Max Turbo Frequency 3.90 GHz
L3 Cache Size 16.5 MB
# of UPI Links 2
Thermal Power 105 Watts
Max Memory Size 1 TB
Memory Types DDR4-2933
Maximum Memory Speed 2933 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported Yes
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
