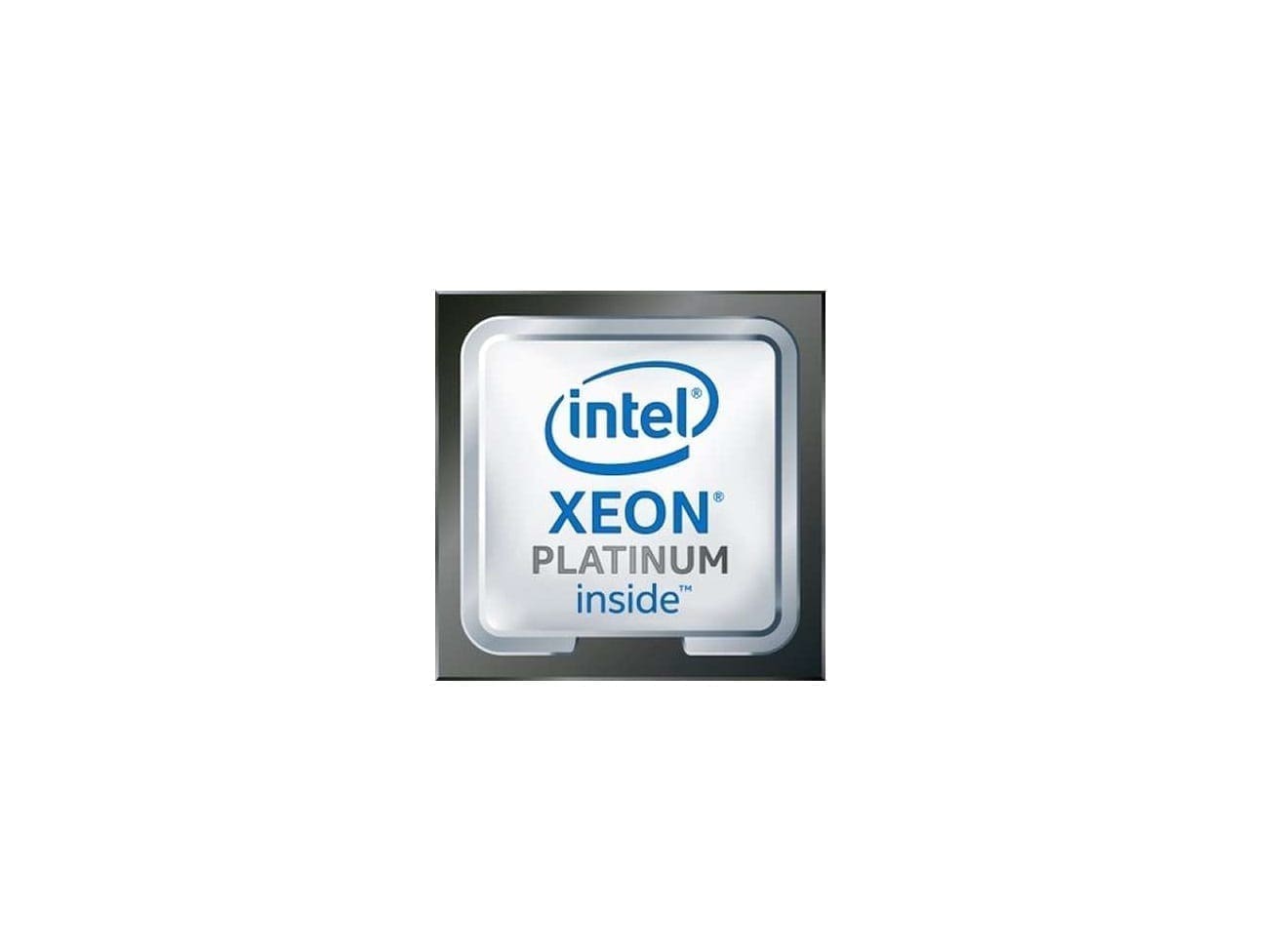

CD8069504194601 Intel Xeon Platinum 8253 16-Core 2.20GHz

CD8069504194601 Technical Specifications

Intel Xeon Platinum 8253 16-Core 2.20GHz 22MB Cache Socket FCLGA3647 Processor

Brand Intel
Part No. CD8069504194601
Processor Type Server
Processor Family 2nd Generation Intel Xeon Scalable Processors
Series Xeon Platinum Processor
Core Model Type/ProcNo. 8253
Processor Code Name Cascade Lake
Core Stepping B1
Manufacturing Technology 14 nm
# of Cores 16
# of Threads 32
Clock Speed 2.20 GHz
Max Turbo Frequency 3.30 GHz
L3 Cache Size 22 MB
# of UPI Links 3
Thermal Power 125 Watts
Max Memory Size 1 TB
Memory Types DDR4-2933
Maximum Memory Speed 2933 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported Yes
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
TCASE 87 °C
Embedded Options Available No
