CD8069504201101 Technical Specifications

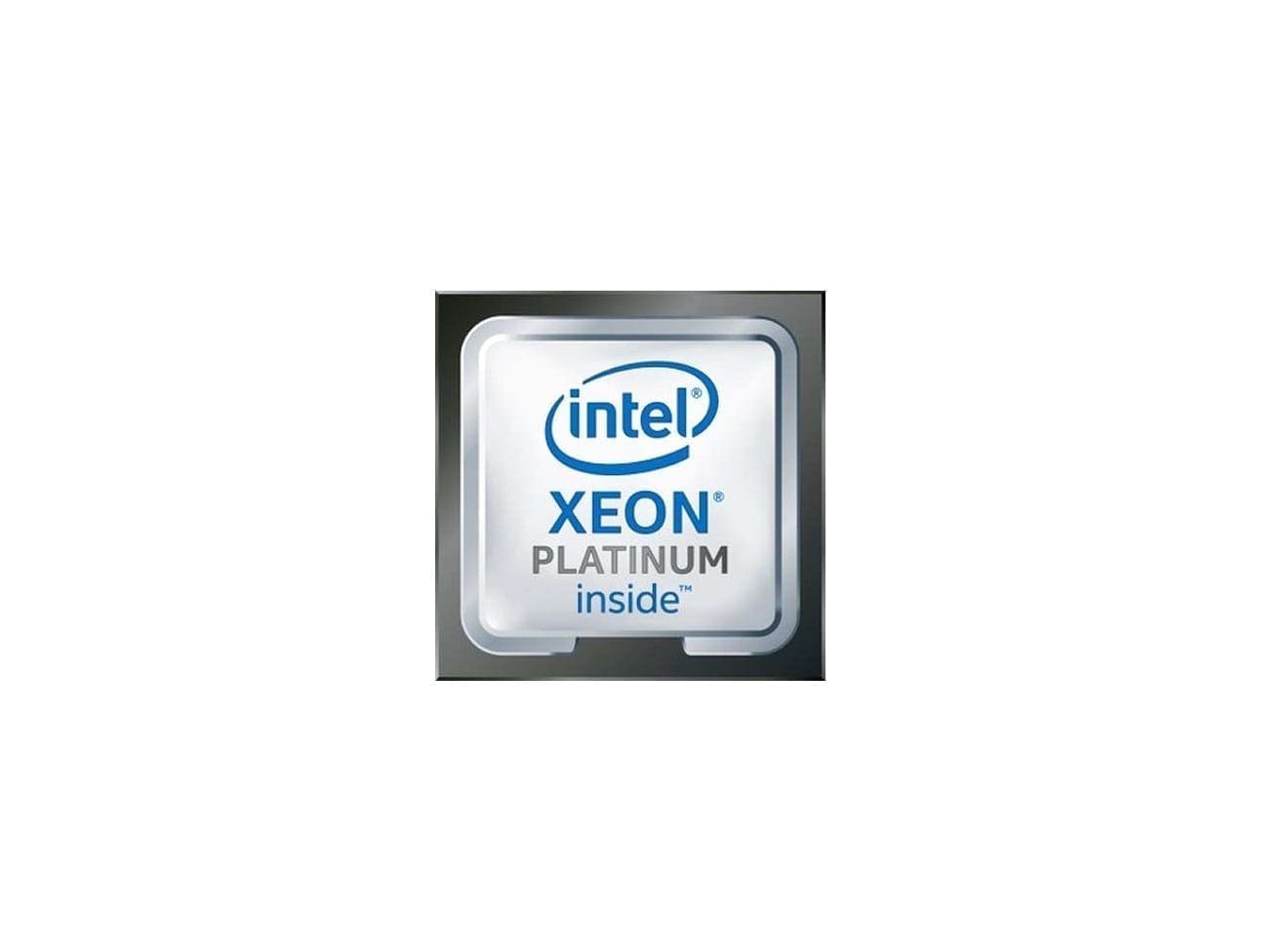

Intel Xeon Platinum 8260 24-Core 2.40GHz 36MB Cache Socket FCLGA3647 Processor
Brand Intel
Part No. CD8069504201101
Processor Type Server
Processor Family 2nd Generation Intel Xeon Scalable Processors
Series Xeon Platinum Processor
Core Model Type/ProcNo. 8260
Processor Code Name Cascade Lake
Core Stepping B1
Manufacturing Technology 14 nm
# of Cores 24
# of Threads 48
Clock Speed 2.40 GHz
Max Turbo Frequency 3.90 GHz
L3 Cache Size 35.75 MB
Thermal Power 165 Watts
Max Memory Size 1 TB
Memory Types DDR4-2933
Maximum Memory Speed 2933 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported Yes
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
TCASE 90 °C
Embedded Options Available No
Scalability S8S
PCI Express 3.0
Max # of PCI Express Lanes 48
Advanced Technologies Enhanced Intel SpeedStep Technology
Intel 64
Intel Deep Learning Boost (Intel DL Boost)
