CD8069504228201 Technical Specifications

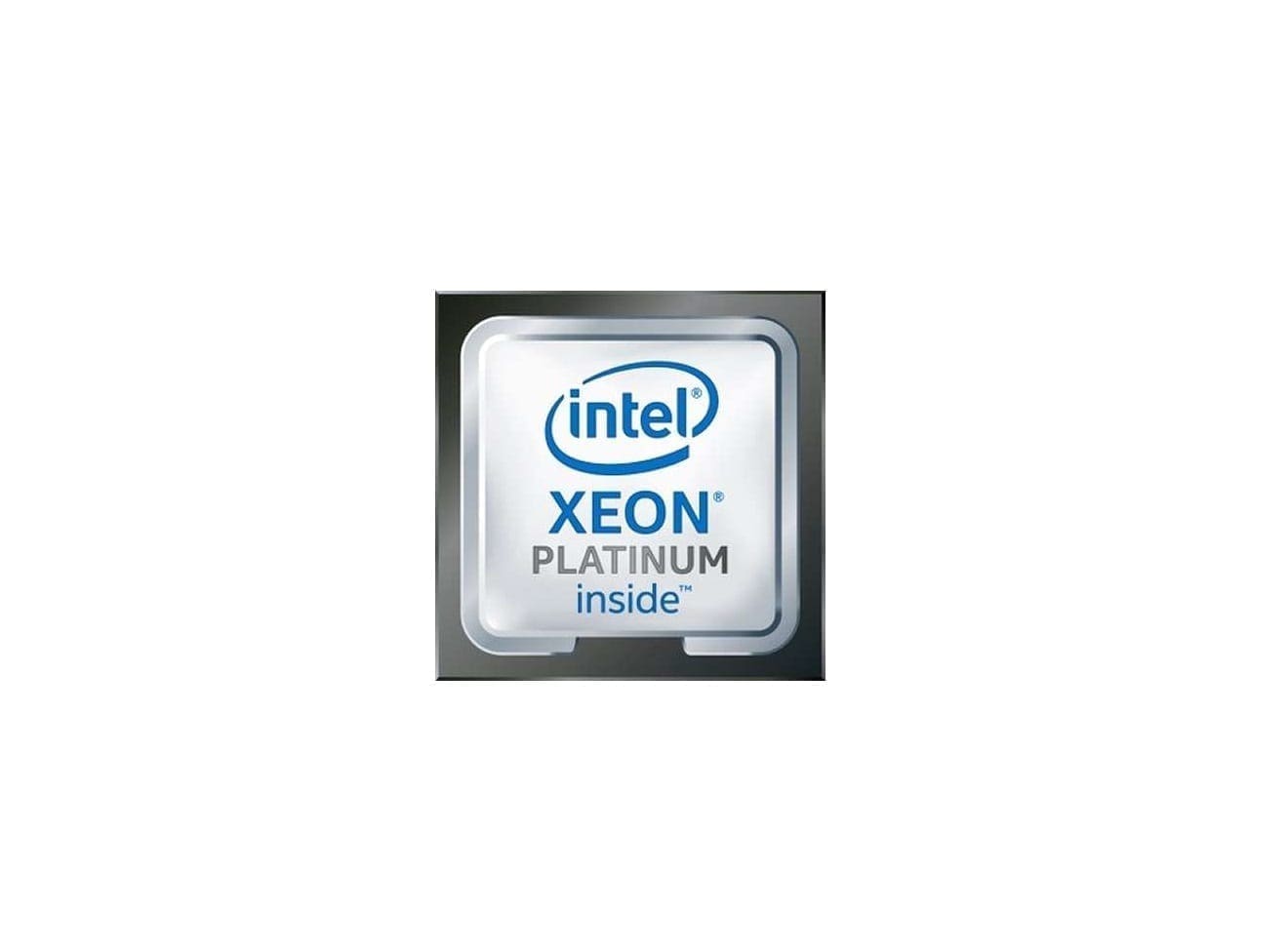

Intel Xeon Platinum 8280L 28-Core 2.70GHz 38.5MB Cache Socket FCLGA3647 Processor
Brand Intel
Part No. CD8069504228201
Processor Type Server
Processor Family 2nd Generation Intel Xeon Scalable Processors
Series Xeon Platinum Processor
Core Model Type/ProcNo. 8280L
Processor Code Name Cascade Lake
Manufacturing Technology 14 nm
# of Cores 28
# of Threads 56
Clock Speed 2.70 GHz
Max Turbo Frequency 4.00 GHz
L3 Cache Size 38.5 MB
# of UPI Links 3
Thermal Power 205 Watts
Max Memory Size 4.5 TB
Memory Types DDR4-2933
Maximum Memory Speed 2933 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported Yes
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
TCASE 84 °C
Embedded Options Available No
Scalability S8S
PCI Express 3.0
Max # of PCI Express Lanes 48
