CD8069504248402 Technical Specifications

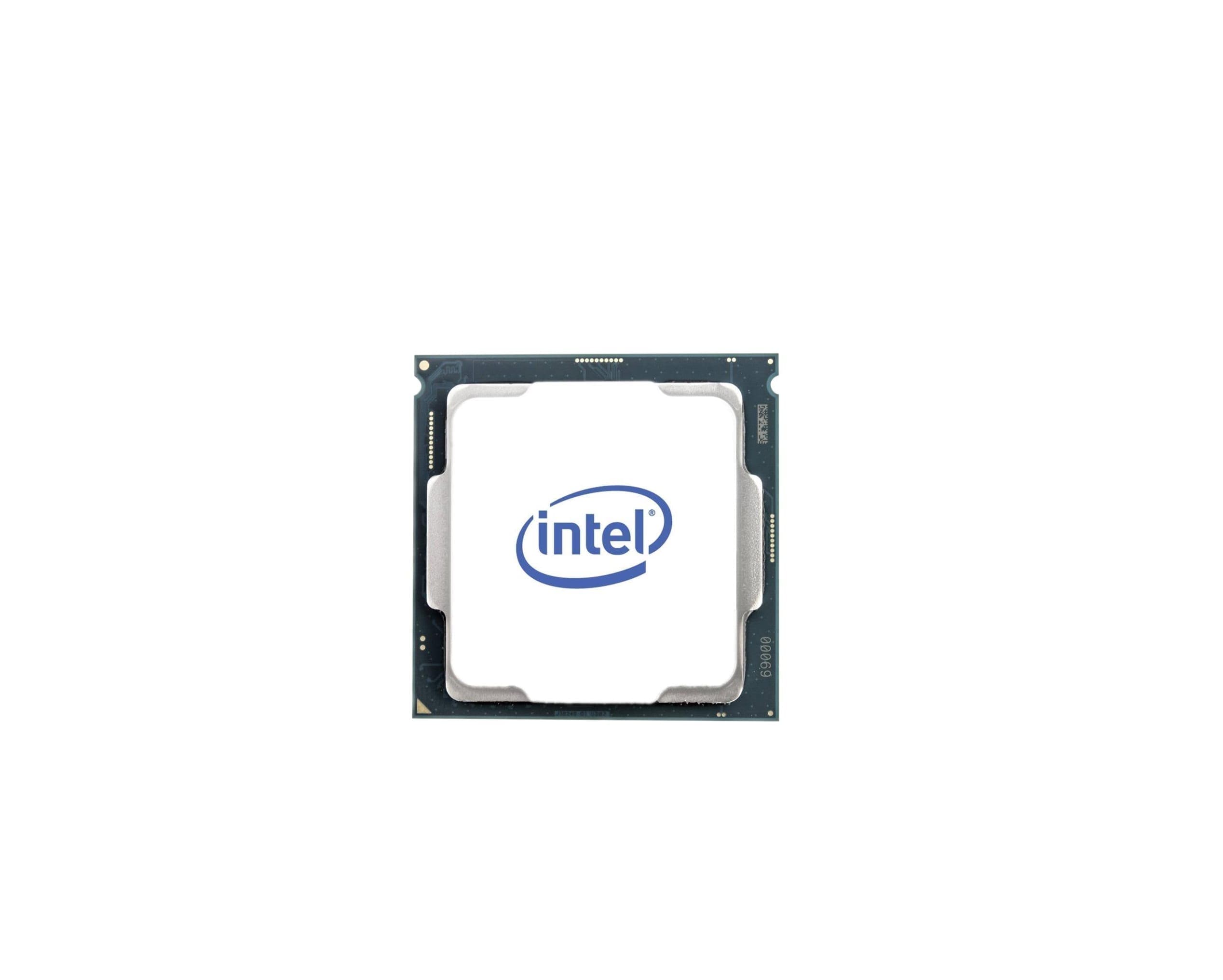

Intel Xeon W-3223 8-Core 3.50GHz 16.5MB L3 Cache Socket FCLGA3647 Processor
Brand Intel
Part No. CD8069504248402
Processor Type Workstation
Series Xeon W Processor
Core Model Type/ProcNo. W-3223
Processor Code Name Cascade Lake
Manufacturing Technology 14 nm
# of Cores 8
# of Threads 16
Clock Speed 3.50 GHz
Max Turbo Frequency 4.00 GHz
L3 Cache Size 16.5 MB
Intel Turbo Boost Max Technology 3.0 Frequency 4.20 GHz
Thermal Power 160 Watts
Max Memory Size 1 TB
Memory Types DDR4-2666
Maximum Memory Speed 2666 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported No
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
TCASE 68 °C
Embedded Options Available No
Scalability 1S
PCI Express 3.0
Max # of PCI Express Lanes 64
Advanced Technologies Enhanced Intel SpeedStep Technology
Intel 64
Intel Deep Learning Boost (Intel DL Boost)
Intel Hyper-Threading Technology
Intel Speed Shift Technology
Intel Turbo Boost Max Technology 3.0
Intel Turbo Boost Technology 2.0
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel vPro Platform Eligibility
Intel VT-x with Extended Page Tables (EPT)
