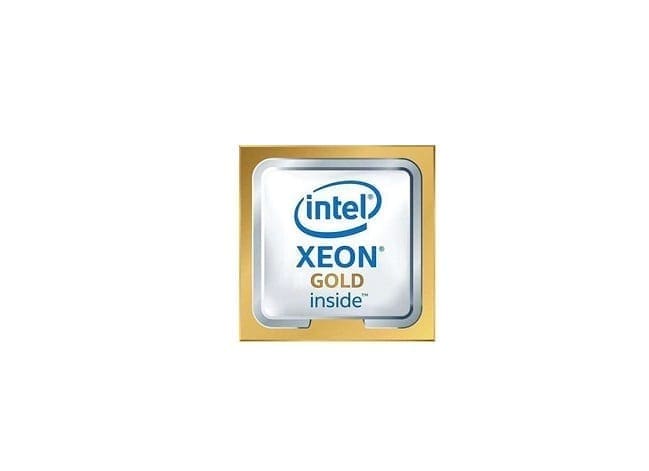

CD8069504283006 Intel Xeon Gold 5220T 18-Core 1.90GHz

CD8069504283006 Overview

CD8069504283006 Intel Xeon Gold 5220T 18-Core 1.90GHz 24.75MB Cache Socket FCLGA3647 Processor

Availability: In Stock
SKU:CD8069504283006
Brand:

CD8069504283006 Technical Specifications

Intel Xeon Gold 5220T 18-Core 1.90GHz 24.75MB Cache Socket FCLGA3647 Processor

Brand Intel
Part No. CD8069504283006
Processor Type Server
Processor Family 2nd Generation Intel Xeon Scalable Processors
Series Xeon Gold Processor
Core Model Type/ProcNo. 5220T
Processor Code Name Cascade Lake
Core Stepping B1
Manufacturing Technology 14 nm
# of Cores 18
# of Threads 36
Clock Speed 1.90 GHz
Max Turbo Frequency 3.90 GHz
L3 Cache Size 24.75 MB
# of UPI Links 2
Thermal Power 105 Watts
Max Memory Size 1 TB
Memory Types DDR4-2667
Maximum Memory Speed 2667 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported Yes
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
TCASE 93 °C
Embedded Options Available Yes
Scalability 4S
PCI Express 3.0
Max # of PCI Express Lanes 48
Advanced Technologies Enhanced Intel SpeedStep Technology
Instruction Set 64-bit
Intel 64
Intel Deep Learning Boost (Intel DL Boost)
Intel Hyper-Threading Technology
Intel Resource Director Technology (Intel RDT)
Intel Speed Shift Technology
Intel Transactional Synchronization Extensions
Intel Turbo Boost Technology 2.0
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel Volume Management Device (VMD)
Intel vPro Platform Eligibility
Intel VT-x with Extended Page Tables (EPT)
# of AVX-512 FMA Units 1
Instruction Set Extensions Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
Security & Reliability Execute Disable Bit
Intel AES New Instructions
Intel Run Sure Technology
Intel Trusted Execution Technology
Mode-based Execute Control (MBE)
