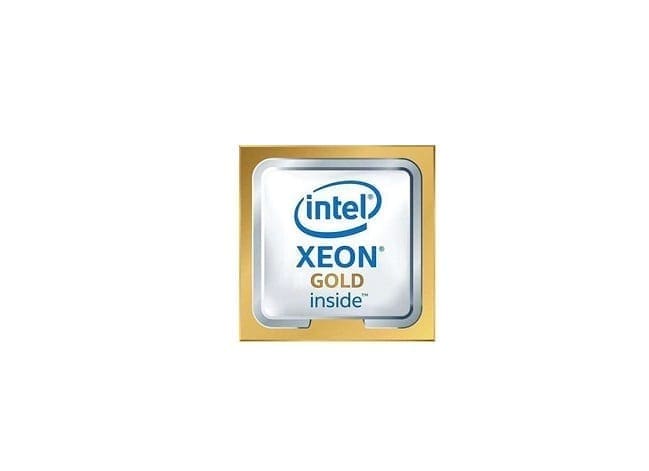

CD8069504283304 Intel Xeon Gold 6234 8-Core 3.30GHz

CD8069504283304 Technical Specifications

Intel Xeon Gold 6234 8-Core 3.30GHz 24.75MB Cache Socket FCLGA3647 Processor

Brand Intel
Part No. CD8069504283304
Processor Type Server
Core Model Type/ProcNo. 6234
Processor Code Name Cascade Lake
Manufacturing Technology 14 nm
# of Cores 8
# of Threads 16
Clock Speed 3.30 GHz
Max Turbo Frequency 4.00 GHz
L3 Cache Size 24.75 MB
# of UPI Links 3
Thermal Power 130 Watts
Max Memory Size 1 TB
Memory Types DDR4-2933
Maximum Memory Speed 2933 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported Yes
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
TCASE 79 °C
Embedded Options Available No
Scalability 4S
PCI Express 3.0
Max # of PCI Express Lanes 48
