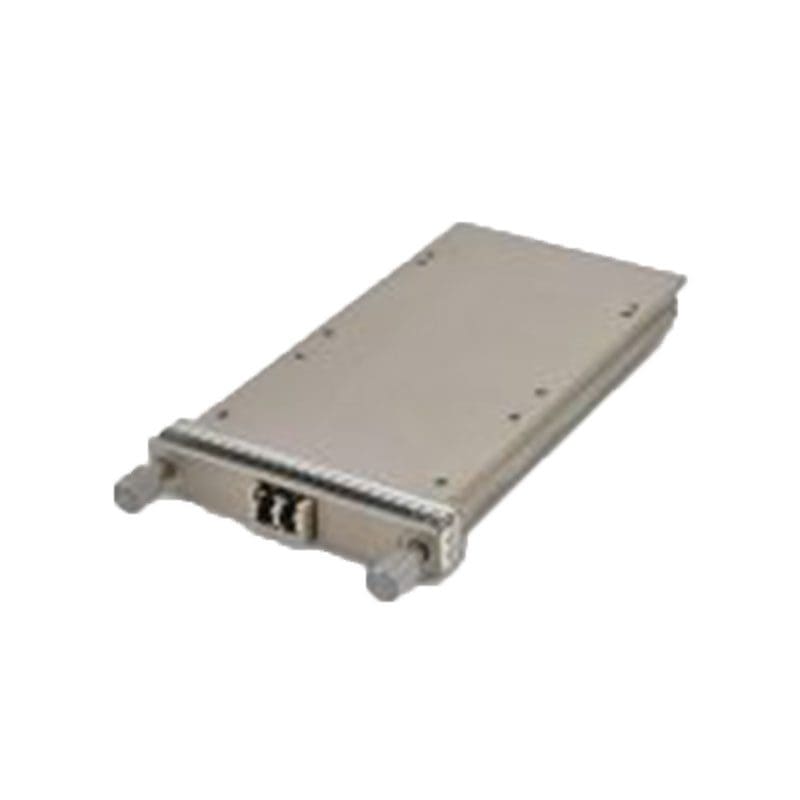

CFP-100GBASE-ZR Juniper Networks CFP Transceiver Module
CFP-100GBASE-ZR Overview
The Juniper Networks CFP-100GBASE-ZR CFP is a pluggable optical interface transceiver module that offers a host of enterprise-grade technology in a compact form factor. It uses DP-QPSK modulation and coherent receiver technology with an optimized DSP and FEC implementation. This low-power module can be directly retrofitted into existing CFP sockets on MX and PTX routers already deployed in the field without the need for new line cards or PIC/MICs. With the inherent performance and robustness of coherent optics and backwards hardware and software compatibility, the CFP-100GBASE-ZR is a plug and play solution that brings up to 49.7 miles of 100 GbE to MX and PTX-based networks.
$180,541
CFP-100GBASE-ZR Technical Specifications
Juniper Networks CFP Transceiver Module 100 Gigabit Ethernet
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Packaged Quantity :1
Networking
Type :CFP Transceiver Module
Form Factor :Plug-in module
Connectivity Technology :Wired
Cabling Type :Ethernet 100GBase-ZR
Data Link Protocol :100 Gigabit Ethernet
Data Transfer Rate :120.579 GBps
Optical Wave Length :1546.119 nm
Max Transfer Distance :49.7
Connectors (for SD)
Left Connector Type :LC single-mode
Interface Provided
Interfaces :1 x Ethernet 100GBase-ZR – LC single-mode
Compatibility
Compatible With :Juniper Networks MX-series MX2010, MX2020, MX240, MX480, MX960 ¦ Juniper Networks PTX Series PTX5000
