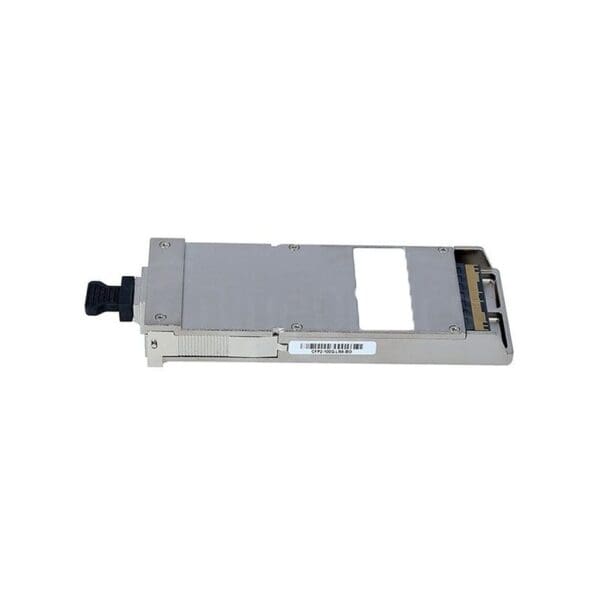

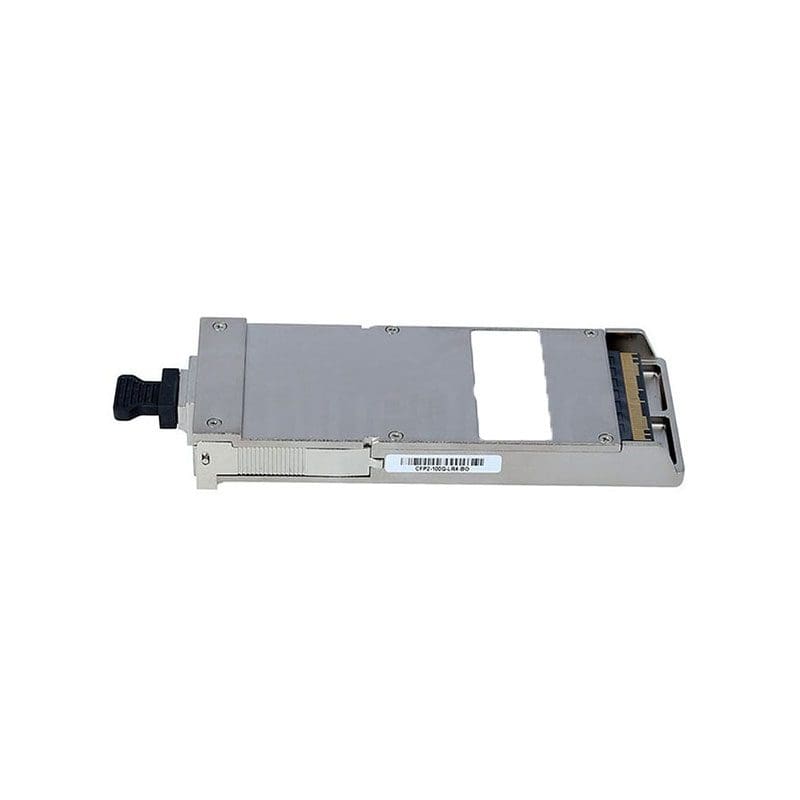

CFP2-100GBASE-SR10 Juniper 100GBASE-SR10 Ethernet Only CFP2

CFP2-100GBASE-SR10 Technical Specifications

Juniper Networks 100GBASE-SR10 Ethernet Only CFP2 Pluggable

Product Name 100GBASE-SR10 Ethernet Only CFP2 Pluggable
Manufacturer Part Number CFP2-100GBASE-SR10
Product Type CFP2
Ethernet Technology 100 Gigabit Ethernet
Media Type Supported Optical Fiber
Network Technology 100GBase-SR10
Environmentally Friendly Yes
Fiber Mode Supported Multi-mode
Interfaces / Ports Details 1 x MPO/MTP 100GBase-SR10 Network
Standard: 100GBASE-SR10
Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4): IEEE 802.3ba—2010
Transmitter wavelengths (range): 840 nm through 860 nm
Transmitter output power, each lane (minimum): –7.6 dBm
Transmitter output power, each lane (maximum): 2.4 dBm
Receiver input power, each lane (minimum): –9.5 dBm, –9.1 dBm
Receiver input power, each lane (maximum): 2.4 dBm, 2.4 dBm
Cable type: MMF
Fiber grade: OM3, OM4
Distance: 100 m, 150 m
