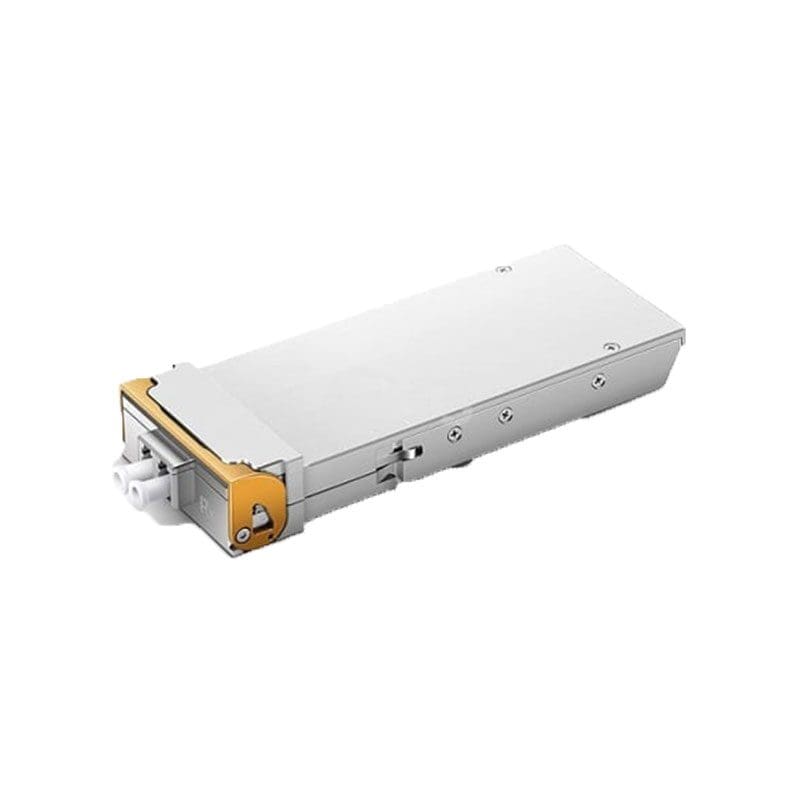

CFP2-DCO-T-WDM-HG Juniper 100G CFPT Interface

CFP2-DCO-T-WDM-HG Technical Specifications

Juniper 100G CFPT Interface

Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Packaged Quantity :1
Line Properties
Line Coding Format :8 QAM, DQPSK, 16 QAM
Networking
Type :CFP2 Transceiver Module
Form Factor :Plug-in module
Connectivity Technology :Wired
Data Link Protocol :200 Gigabit Ethernet
Optical Wave Length :1568.362-1528.773 nm
Max Transfer Distance :1243
Features :HGFEC mode support, Digital Optical Monitoring (DOM) support, Erbium Doped Fiber Amplifier (EDFA), TOF support, Digital Diagnostics Monitoring (DDM)
Connectors (for SD)
Left Connector Type :LC/PC single-mode
Interface Provided
Interfaces :1 x – LC/PC single-mode x 2
Power Device
Power Consumption Operational :20.5 watt
Miscellaneous
Compliant Standards :MSA SFF-8665
Dimensions & Weight
Width :1.6 inch
Depth :4.2 inch
Height :0.5 inch
Weight :7.41 ounce
