Refurbished CHAS-MX104-S Technical Specifications

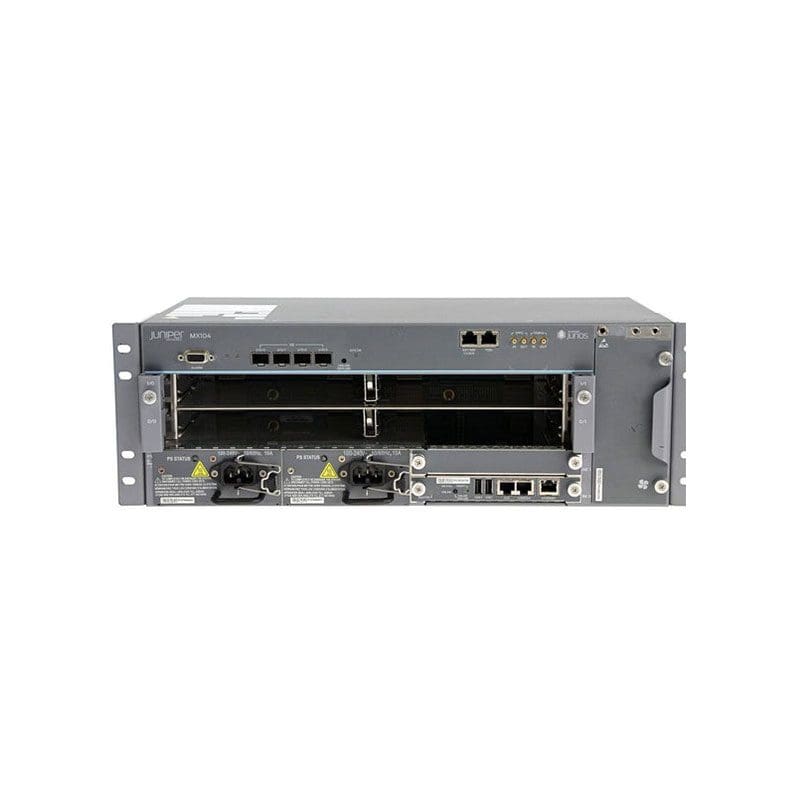

Juniper Networks MX-series MX104 router rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks MX-series
Model :MX104
Packaged Quantity :1
Chassis
Airflow Direction :Side to side airflow
Installed Devices / Modules Qty :0
Supported Devices / Modules Qty :6
Networking
Type :Router
Form Factor :Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Features :Side to side airflow
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x Services and Routing Engine (SRE), 4 (total) / 4 (free) x Modular Interface Card (MIC)
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :0
Max Supported Qty :2
Miscellaneous
Color Category :Gray
Height (Rack Units) :3.5
Compliant Standards :ETSI 300 019, EN 61000-4-11, EN 61000-4-4, EN 61000-3-2, EN 61000-3-3, EN 61000-4-5, EN55024:1998 + A1 + A2, EN 61000-4-2, UL 60950-1 Second Edition, EN 60950-1, EN 60825-1, ETS 300 753, EN 61000-4-3, GR-63-CORE, IEC 60950-1, FCC Part 15 A, EN 61000-4-6, NEBS level 3, BSMI CNS 13438, EN 300 386 V1.3.3, CAN/CSA C22.2 No. 60950-1, VCCI Class A, GR-1089-CORE, EN55022 Class A, EMI, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width :17.5 inch
Depth :9.5 inch
Height :6.1 inch
Weight :31.97 lbs
Environmental Parameters
Min Operating Temperature :-40 degree Fahrenheit
Max Operating Temperature :149 degree Fahrenheit
Humidity Range Operating :5 – 85% (non-condensing)
