CPAK-100GE-LR4 Technical Specifications

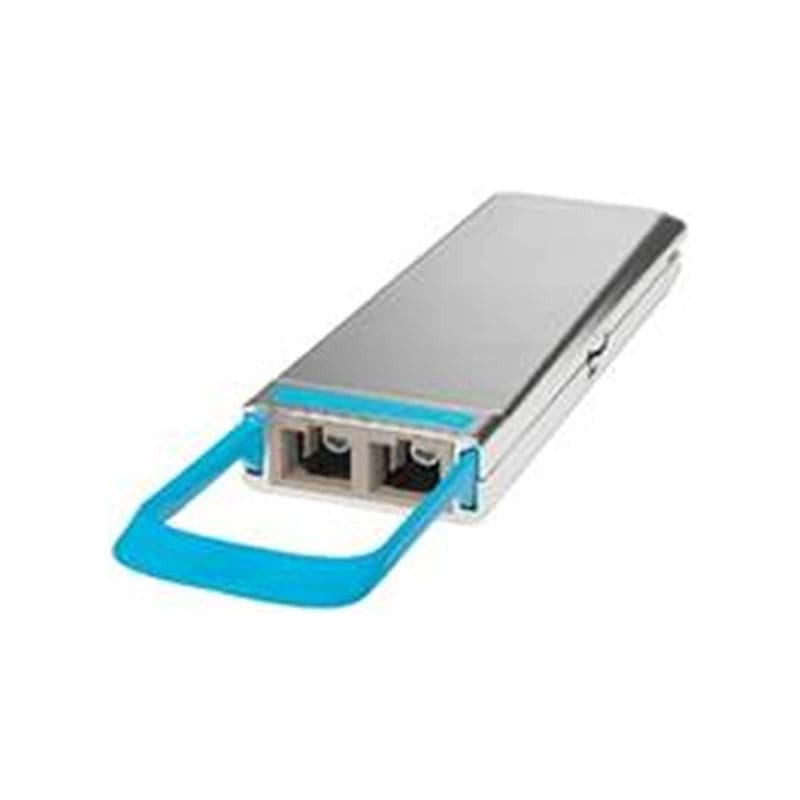

Cisco 100GBASE-LR4 CPAK Module
Product Number: CPAK-100GE-LR4
Description: Cisco 100GBASE-LR4 CPAK Module for SMF (terminated with LC Connectors)
Connector: Dual LC/PC connector
Wavelength: 1310nm
Cable Type: SMF Duplex
Cable Distance: 10km
Transmit Power (dBm):
Maximum: 4.5 per lane
Minimum: -4.3 per lane
Receive Power (dBm):
Maximum: 4.5 per lane
Minimum: -10.6 per lane
Transmit and Receive Center Wavelength Range (nm): Four lanes:
1294.53 to 1296.59
1299.02 to 1301.09
1303.54 to 1305.63
1308.09 to 1310.19
