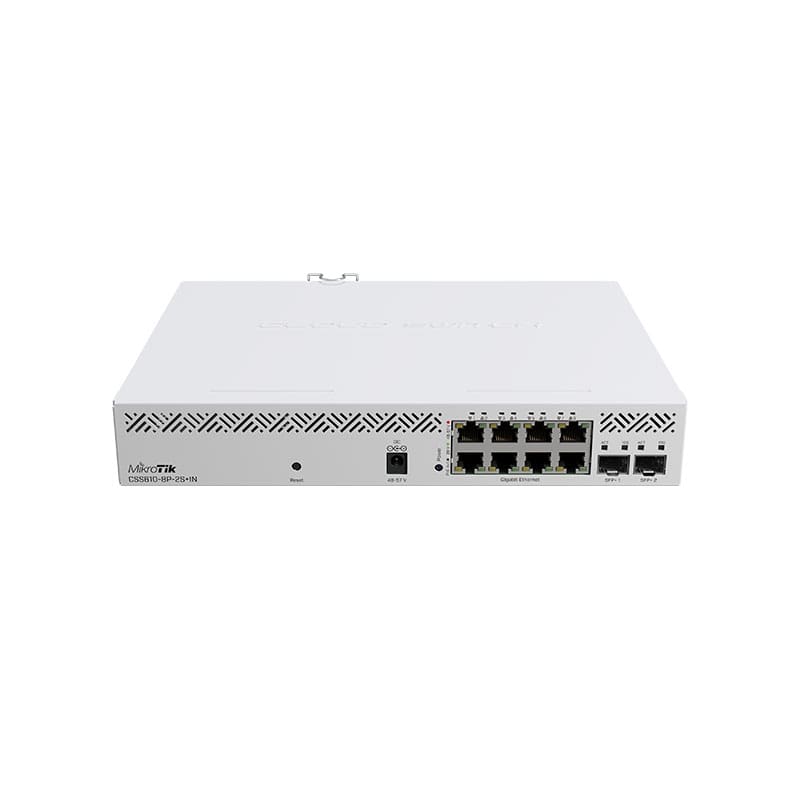

CSS610-8P-2S+IN MikroTik 8-Ports PoE 1Gbase-T + 2-Ports Switch

CSS610-8P-2S+IN Technical Specification

MikroTik 8-Ports PoE 1Gbase-T + 2-Ports SFP+ Switch

Manufacturer: MikroTik
Dimensions: 272x208x44mm
Operating System: SwitchOS Lite
Storage size: 64 KB
Storage type: FLASH
MTBF: Approximately 200’000 hours at 25C
Tested ambient temperature: -40°C to 70°C

Powering
Number of AC inputs: 1
AC input range: 100-240
Number of DC inputs: 1 (DC jack)
DC jack input Voltage: 48-57 V
Max power consumption: 162 W
Max power consumption without attachments: 12 W
Cooling type: Passive

PoE-out
PoE-out ports: Ether1-Ether8
PoE out: 802.3af/at
Max out per port output (input 18-30 V): 1000 mA
Max out per port output (input 30-57 V): 625 mA
Total output power: 140
Ethernet
10/100/1000 Ethernet ports: 8
Number of 1G Ethernet ports with PoE-out: 8

Fiber
SFP+ ports: 2
Other
CPU temperature monitor: Yes
Voltage Monitor: Yes
Certification & Approvals
Certification: CE, EAC, ROHS
IP: IP20
