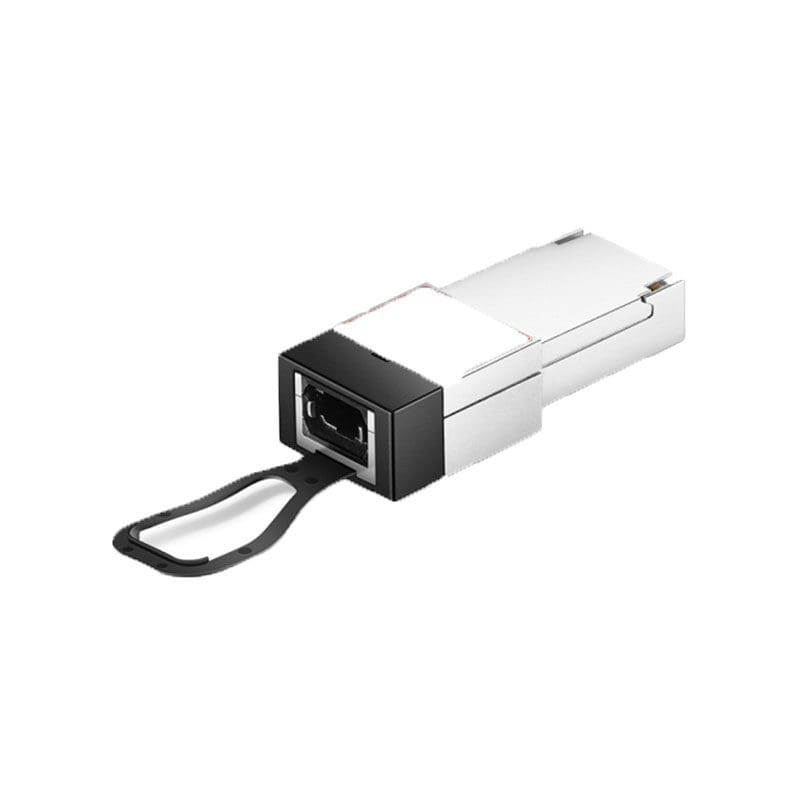

CXP-100GBASE-SR10 Juniper Networks CXP Transceiver Module

CXP-100GBASE-SR10 Technical Specifications

Juniper Networks CXP Transceiver Module 100 Gigabit Ethernet

Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Packaged Quantity :1
Networking
Type :CXP Transceiver Module
Form Factor :Plug-in module
Connectivity Technology :Wired
Cabling Type :Ethernet 100GBase-SR10
Data Link Protocol :100 Gigabit Ethernet
Data Transfer Rate :100 GBps
Connectors (for SD)
Left Connector Type :MPO
Interface Provided
Interfaces :1 x Ethernet 100GBase-SR10 – MPO
Slot Required
Compatible Slots :1 x CXP
Transmitter output power, each lane (minimum): –7.6 dBm
Transmitter output power, each lane (maximum): 2.4 dBm
Receiver input power, each lane (minimum): –9.5 dBm, –9.1 dBm
Receiver input power, each lane (maximum): 2.4 dBm, 2.4 dBm
Cable type: MMF
Fiber grade: OM3, OM4
Distance: 100 m, 150 m
