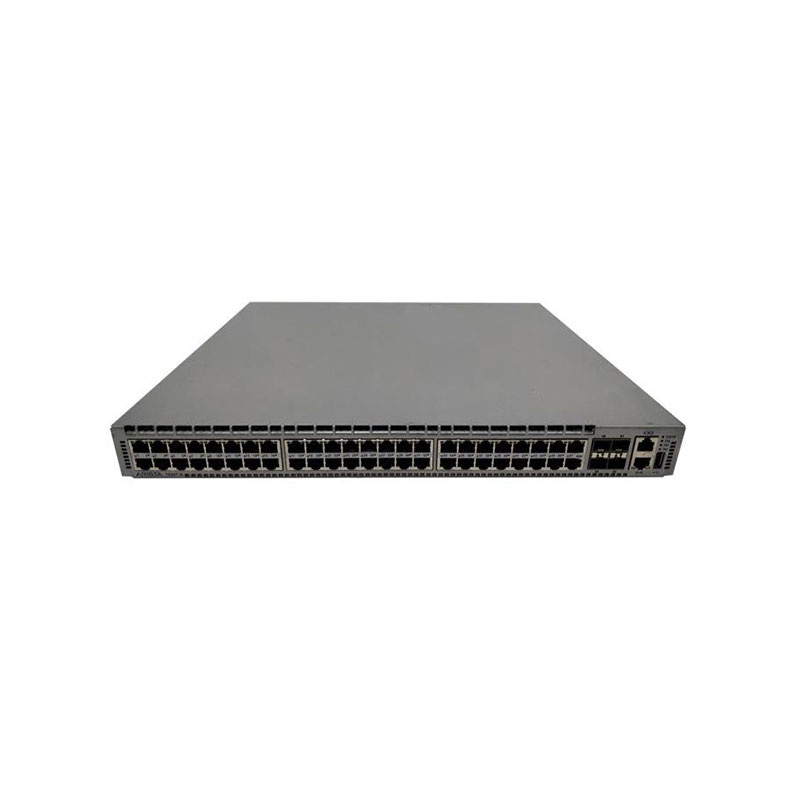

DCS-7048T-4S-R Arista 48-Ports RJ-45 + 4-Ports 10GBase-X SFP+ Switch
DCS-7048T-4S-R Overview
The Arista DCS-7048T-4S-R is a high-density Layer 2/3 switch designed for data centers and enterprise networks that require reliable, low-latency, and high-performance connectivity. It features 48 RJ-45 Gigabit Ethernet ports for standard copper connections and 4 10GBase-X SFP+ ports for high-speed uplinks to aggregation or core networks.The switch provides advanced Layer 2 and Layer 3 features, including VLANs, inter-VLAN routing, link aggregation, QoS, and dynamic routing protocols, enabling optimized traffic flow and scalable network architectures. Its 1U rack-mountable design allows high-density deployment in standard data center racks.
DCS-7048T-4S-R Technical Specifications
Arista 48-Ports RJ-45 + 4-Ports 10GBase-X SFP+ Switch
Manufacturer Part Number: DCS-7048T-4S-R
Brand Name: Arista
Product Line: 7048T-4S Series
Product Type: Managed Layer 3 Gigabit Ethernet Switch
Total Ports: 52
Port Type: 48 x 10/100/1000Base-T RJ-45, 4 x 10GBase-X SFP+
Switching Capacity: 176 Gbps
Forwarding Rate: 130.9 Mpps
Layer Support: Layer 2 / Layer 3
MAC Address Table: 32,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: STP, RSTP, MSTP
Routing: Static, RIP, OSPF, BGP, IPv4/IPv6
Link Aggregation: IEEE 802.3ad LACP
Quality of Service (QoS): 8 queues, IEEE 802.1p, DSCP
Security: 802.1X, ACLs, RADIUS, TACACS+
Management: CLI, Web GUI, SNMP, CloudVision, REST API
Port Mirroring: Supported
